7W 3CCT Tiltable Fire-Rated Downlight Dimmable IP65 White DL127-7P/S
Dimensions：
Ø90 x H37mm,cut-out 70-75mm
Power：
7W
Color temperature：
3CCT 2700K-3000K-4000K or 3000K-4000K-5700K
Dimming or not：
Yes, triac dimmable
Beam angle：
38° or 60°
Rated voltage：
AC220-240V
Key Features & Benefits
High Efficiency 110lm/W with 3CCT
Warm light 2700K/3000K, neutral light 4000K, or cool light 5700K

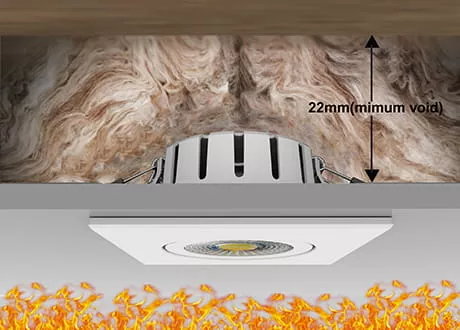

Fire-rated / Insulation Materials Coverable
30,60,90min for timber, web and staircraft i-joists, coverable, mini void 22mm
90° Rotation each Direction
Tiltable design greatly expands the coverage of the light

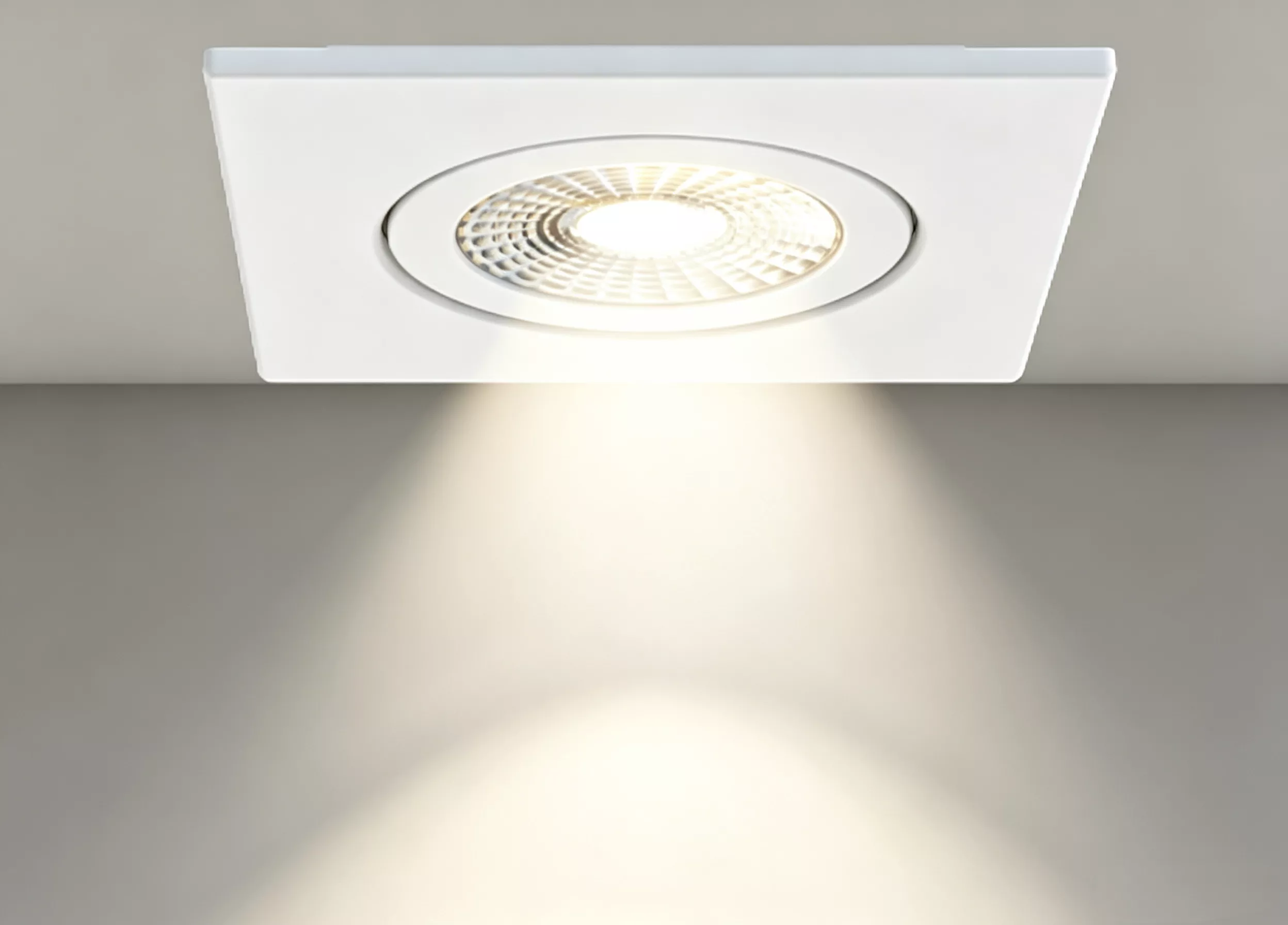

Waterproof IP65 from below the ceiling
IP65 rated from the front making it ideal for bathrooms as well as living spaces
Triac Dimmable / Phase Dimming Driver
Fully dimming driver, with loop in/out terminal for easy installation

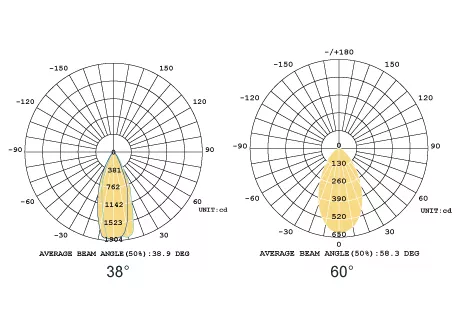

38° or 60° Beam Optional
High quality of LED chip and lens, offering RA>80 or RA>90 version
Technical Specifications
| Model | DL127-7P/S | Beam Angle | 38° or 60° |
| Protection Class | Class II / IP65 / IK08 | Dimming | Trailing edge and leading edge |
| Power | 7W | Finish Color | Black, White, Polished Chrome, Matt brass, Brushed Nickel |
| Input | AC220-240V 50/60Hz | Color Temperature | 2700K/3000K/4000K or 3000K/4000K/5700K |
| Lumen | 770 | Size | Dia90mm, Cutout: 70-75mm |
| Efficiency | 110lm/W | Certification | CE, UKCA, RoHS |
| Life Time | >50000 hours | Warranty | 5 Years |
| Fire Rated | Yes | Coverable | Yes |
Finish color: white, black, polished chrome, matt brass, brushed nickel
Diameter 90mm, height 37mm, hole opening range 70-75mm, recessed depth 22mm.
7 choice of junction boxes, 1st- 4th fixing connectors, loop-in & loop-out terminal provides a simple installation.
✔️ BBC RE2020 Compliant (France) - Safe to cover with ceiling insulation. Perfect for French eco-building rules.
✔️ 30/60/90-Min Fire Rated (UK) - TUV Tested for top safety. Meets strict UK building standard BS476-21 for all ceilings.

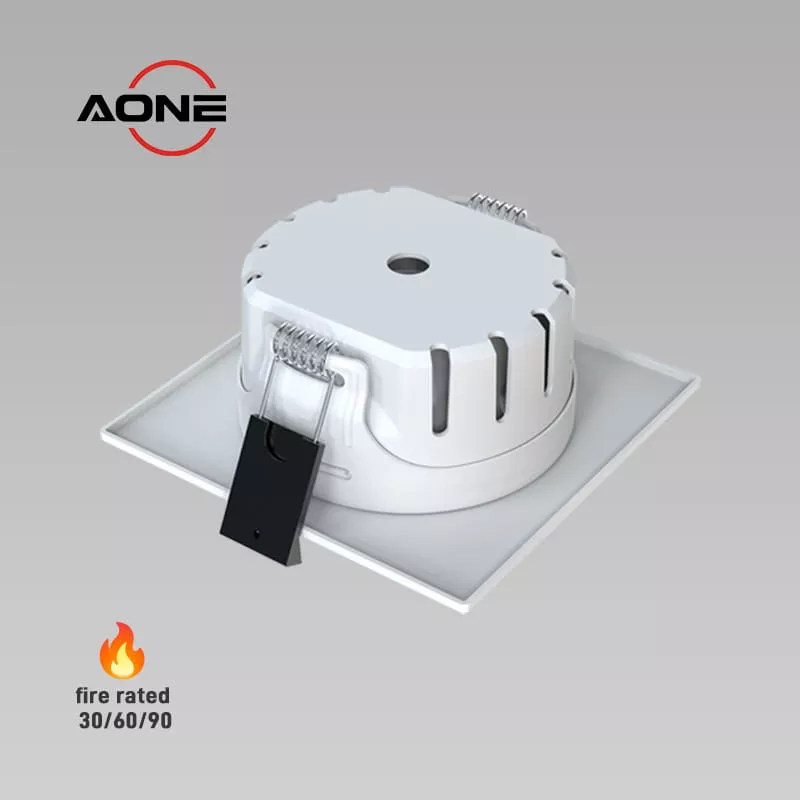

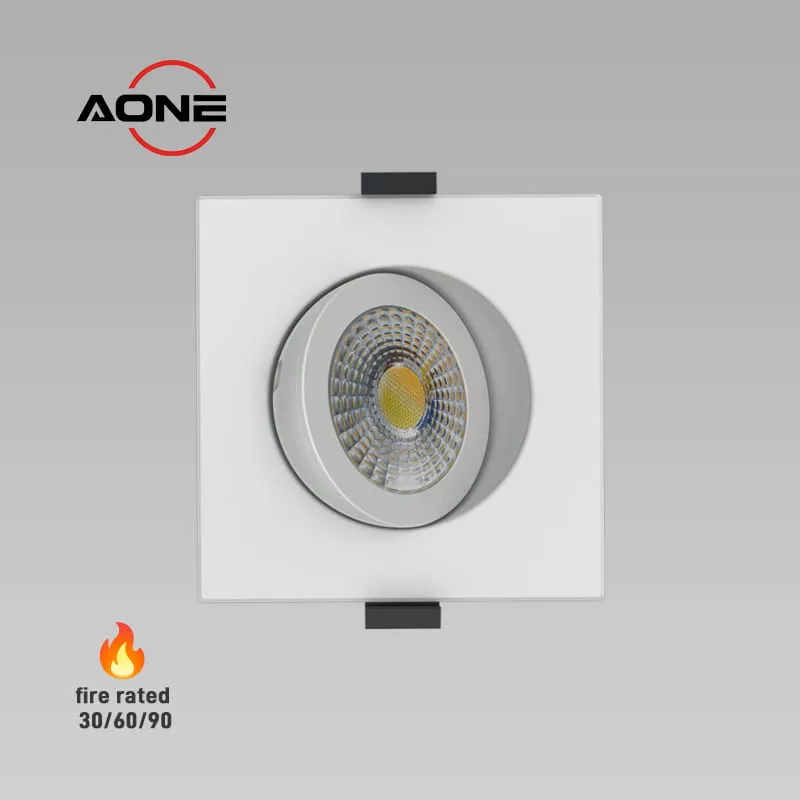

✔️ Square Recessed Adjustable Spotlight - Stand out with a premium square shape surface. Available in 5 sleek finishes: white, black, gold, brushed chrome, and polished chrome.
✔️ IP65 & Tiltable Design - Safely adjust the lighting angle. It stays fully waterproof for livings, bathrooms and kitchens.
✔️ 3-in-1 CCT (Saves Inventory) - Light color switch between 2700K, 3000K, 4000K, or 5700K. Stock just 1 SKU for 3 light color options.
✔️ OEM/ODM Ready - We help build your brand. Get custom logos and packaging for the EU/UK market.
Smooth dimming 10%-100% come out an artistic atmosphere and create your individual LED recessed luminaire.
Warm light to cool light, high efficiency CRI(RA) 80+ or 90+ MacAdams<6 best display the products.
Waterproof & Dustproof, practical downlight/spotlight can provide directional lighting to kitchen island or worktops
Front bezel is IP65 waterproof to suit for wet locations, zone 2 and zone 3.

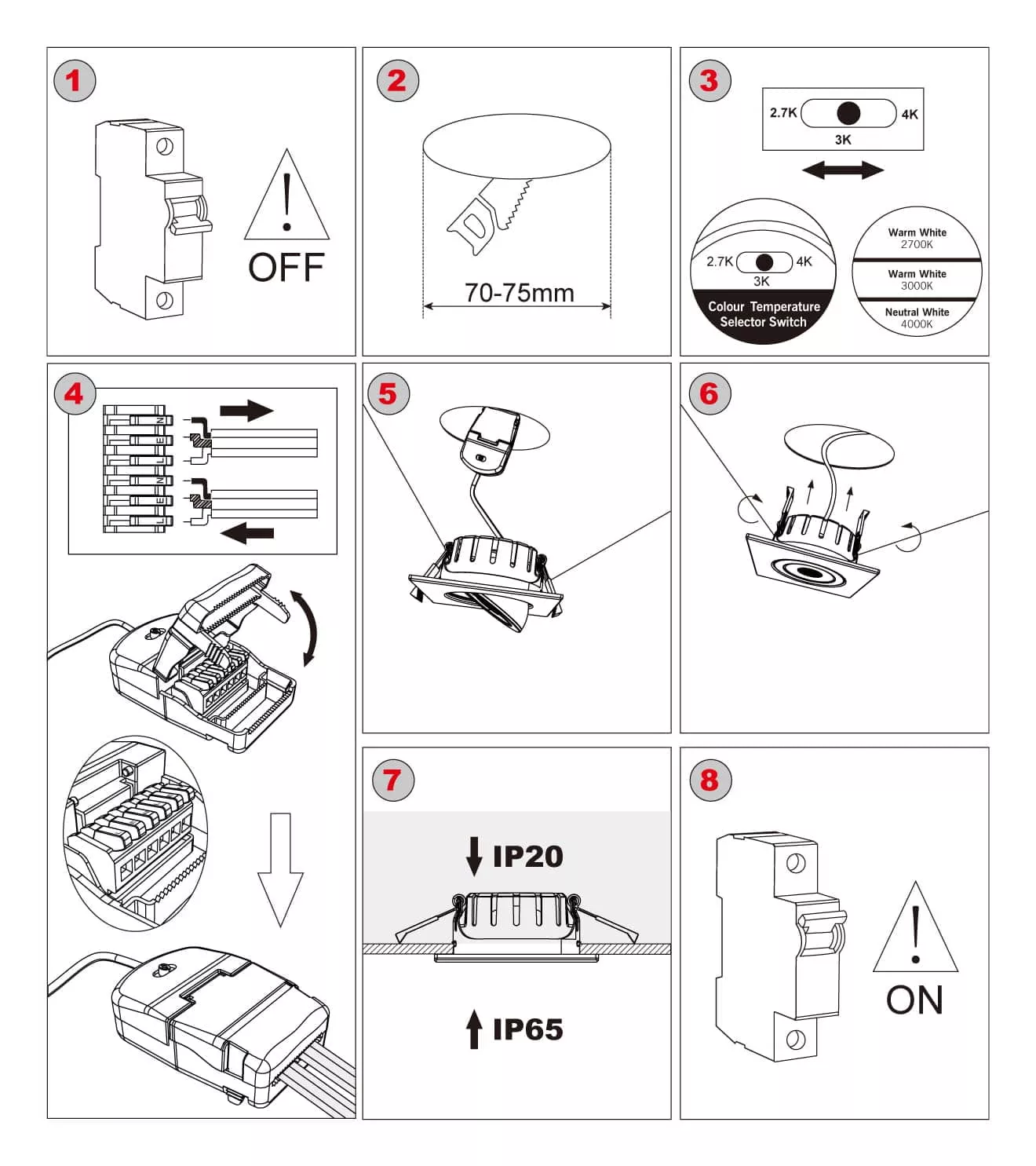

Installation Display
easy installation design helps electricians work faster, which directly helps to save installation cost on any lighting projects
- Power Off: Always switch off the mains power first for safety (Fig 1).
- Cut Hole: Cut a standard 70-75mm round hole in the ceiling (Fig 2).
- Select Light Color: Before installing, slide the CCT switch of dimmable driver to choose your preferred light color: 2700K, 3000K, or 4000K (Fig 3).
- Fast Wiring (Tool-less): Strip the wires and push them into the quick-fit terminal block (L, E, N). Snap the protective cover shut—no screws needed ! (Fig 4).
- Insert Box: Push the wired terminal box up through the hole into the ceiling cavity (Fig 5).
- Snap in Place: Hold the two spring clips upwards and push the square spotlight flush into the ceiling (Fig 6).
- Secure Seal: Once installed, it provides a safe IP65 waterproof seal from below the ceiling (Fig 7).
- Power On: Turn the mains power back on at the breaker (Fig 8).
Production Process
A-ONE is a professional LED lighting factory with 17 years of manufacturing experience. We feature independent R&D, offering free mold opening, test certifications. Equipped with automated & scientific production lines, each light undergoes 100% aging tests and strict quality checks. Enjoy 5-7 years warranty. Our process covers communication, design, sampling, quality/testing, material prep, production, function/EMC tests, aging, packaging & OQC. Ideal for reliable, high-quality LED lighting solutions.
Quality is our lifeline. We strictly enforce comprehensive testing and certification for every new product in collaboration with top-tier laboratories (SGS/TUV/DEKRA), covering CE-LVD, CE-EMC, CB, IP waterproof, SGS fire-rated, RED, SGS air-tightness, 850°C glow-wire, IK rating, Acoustic Rating, 50,000+ hours lifespan, ErP, ROHS, REACH. As a professional LED lighting manufacturer, we guarantee superior product quality through rigorous testing procedures and international certification standards.
Beyond third-party certifications with SGS/TUV/DEKRA, our in-house laboratory features 14+ advanced testing devices including EVERFINE Integrating Sphere, IES Test Equipment, EMC Chamber, IP6X waterproof Checking, Climate Chamber, Computer Aging System, and specialized equipment for dielectric, insulation, salt spray, surge, vibration and drop tests. This comprehensive testing capability ensures every finished product meets the highest quality standards from development to delivery.
