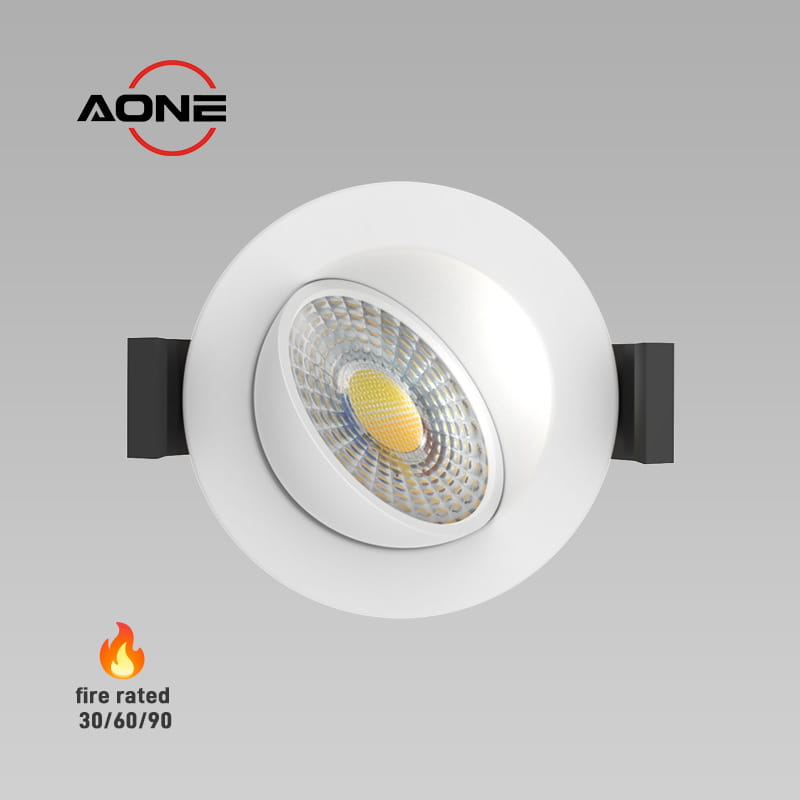

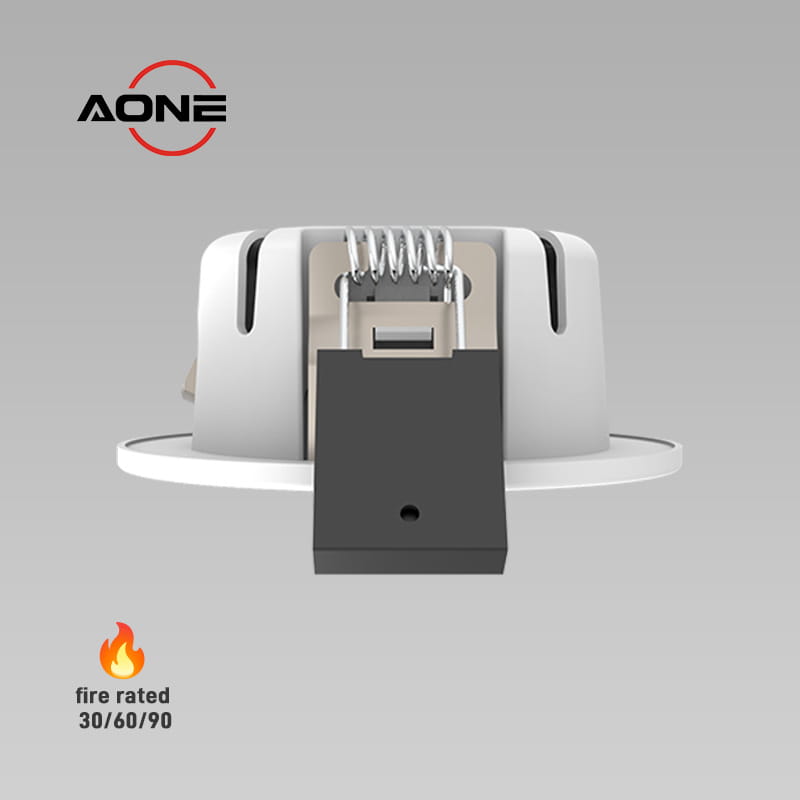

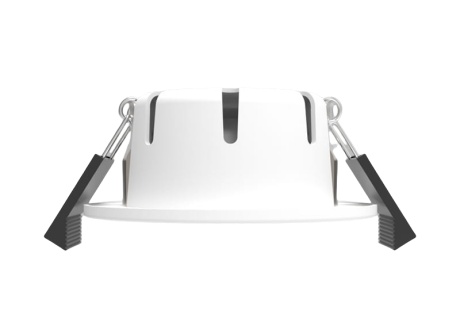

Super Slim Adjustable Fire-Rated LED Downlight 5W Multi-CCT DL127-5P

Dimmable IP65 waterproof Tiltable Recessed downlight, power 5W and 3CCT selectable between 2700K, 3000K, 4000K or 3000K, 4000K, 5700K. Low profile design, only 30mm height, tiltable 180°, fully fire rated tests for 30, 60 and 90 minute approval, coverable with insulation material, OEM/ODM Manufacturing give customized lighting solutions.

Dimensions:

Ø75 x H30mm,cut-out 60-70mm

Power:

5W

Color temperature:

3CCT 2700K-3000K-4000K or 3000K-4000K-5700K

Dimming or not:

Yes, triac dimmable

Beam angle:

38° or 60°

Rated voltage:

AC220-240V

Key Features & Benefits



downlight/spotlight lumen

High Effciency

110lm/W, delivering up to 550lm/W.

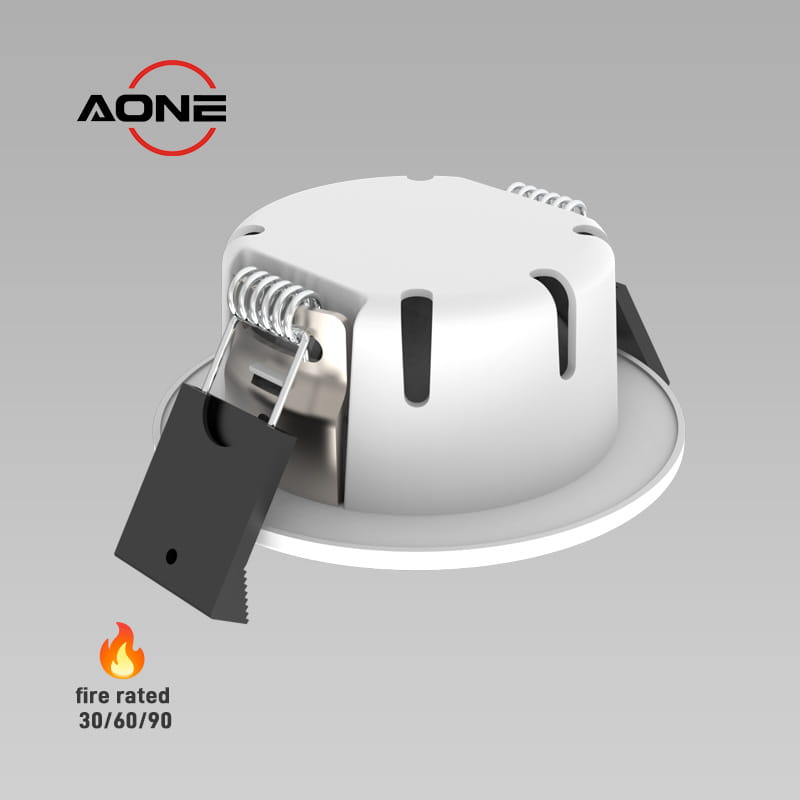

fire rated downlight/spotlight

Fire-rated / Coverable

30,60,90min for timber, web and staircraft i-joists, coverable, mini void 15mm

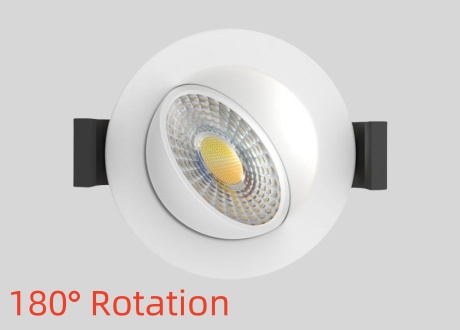

tiltable downlight/spotlight

180° Rotation

Tiltable design greatly expands the coverage of the light

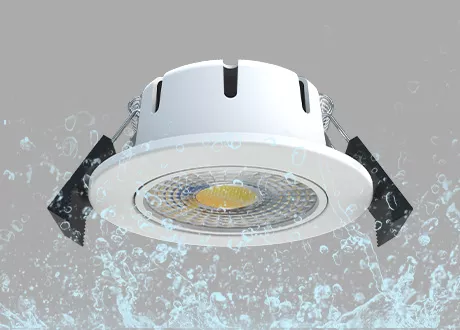

waterproof downlight/spotlight

Waterproof Function

IP65 rated from the front making it ideal for bathrooms as well as living spaces

connector for downlight/spotlight

Fast Installation

Loop in/out terminal reduces installation time by 50%

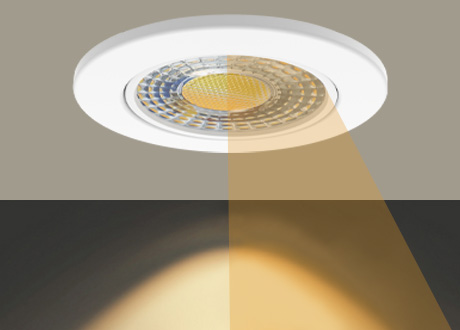

downlight/spotlight beam angle 38°, 60°

38° or 60° Beam Optional

High quality of LED chip and lens, offering RA>80 or RA>90 version





Technical Specifications



Model DL127-5P Beam Angle 38° or 60°
Protection Class Class II / IP65 / IK08 Dimming Trailing edge and leading edge
Power 5W Color White
Input AC220-240V 50/60Hz Color Temperature 2700K/3000K/4000K or 3000K/4000K/5700K
Lumen 550 Size Dia75mm, Cutout: 60-70mm
Efficiency 110lm/W Certification CE, UKCA, RoHS
Life Time >50000 hours Warranty 5 Years
Fire Rated Yes Coverable Yes

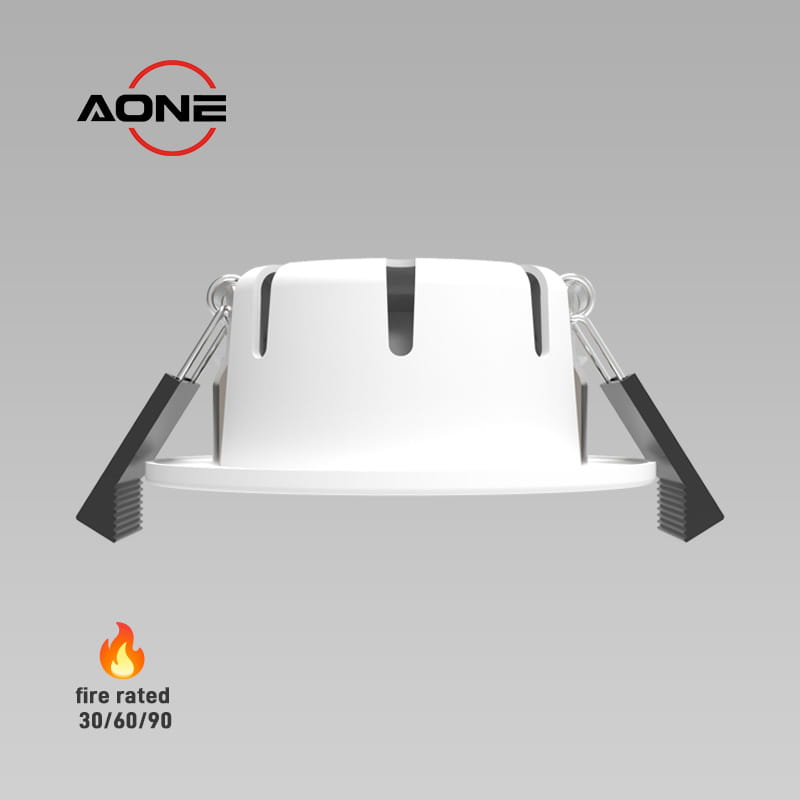

ultra thin downlight/spotlight

Only 30mm height, fitting any ceiling voids

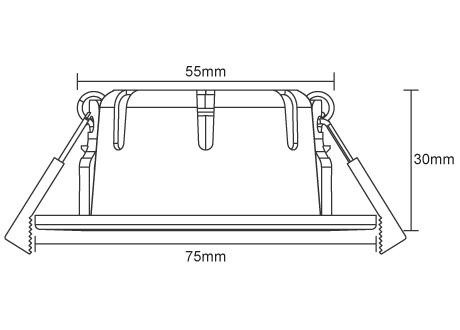

downlight/spotlight sizes

Diameter 75mm, height 30mm, hole opening range 60-70mm, recessed depth 15mm.

downlight/spotlight junction boxes

7 choice of junction boxes, 1st- 4th fixing connectors, loop-in & loop-out terminal provides a simple installation.



Applicable Scenarios
Perfect for residential, hospitality, commercial office applications

living downlight

Living

Smooth dimming 10%-100% come out an artistic atmosphere and create your individual LED recessed luminaire.

shopping downlight

Shopping

Warm light to cool light, high efficiency CRI(RA) 80+ or 90+ MacAdams<6 best display the products.

downlight spotlight for kitchen use

Kitchen

Waterproof & Dustproof, practical downlight/spotlight can provide directional lighting to kitchen island or worktops

waterproof downlight spotlight

Bathroom

Front bezel is IP65 waterproof to suit for wet locations, zone 2 and zone 3.

Production Process

  A-ONE is a professional LED lighting factory with 17 years of manufacturing experience. We feature independent R&D, offering free mold opening, test certifications. Equipped with automated & scientific production lines, each light undergoes 100% aging tests and strict quality checks. Enjoy 5-7 years warranty. Our process covers communication, design, sampling, quality/testing, material prep, production, function/EMC tests, aging, packaging & OQC. Ideal for reliable, high-quality LED lighting solutions.

downlight production process



  Quality is our lifeline. We strictly enforce comprehensive testing and certification for every new product in collaboration with top-tier laboratories (SGS/TUV/DEKRA), covering CE-LVD, CE-EMC, CB, IP waterproof, SGS fire-rated, RED, SGS air-tightness, 850°C glow-wire, IK rating, Acoustic Rating, 50,000+ hours lifespan, ErP, ROHS, REACH. As a professional LED lighting manufacturer, we guarantee superior product quality through rigorous testing procedures and international certification standards.

downlight certification



  Beyond third-party certifications with SGS/TUV/DEKRA, our in-house laboratory features 14+ advanced testing devices including EVERFINE Integrating Sphere, IES Test Equipment, EMC Chamber, IP6X waterproof Checking, Climate Chamber, Computer Aging System, and specialized equipment for dielectric, insulation, salt spray, surge, vibration and drop tests. This comprehensive testing capability ensures every finished product meets the highest quality standards from development to delivery.

downlight testing center

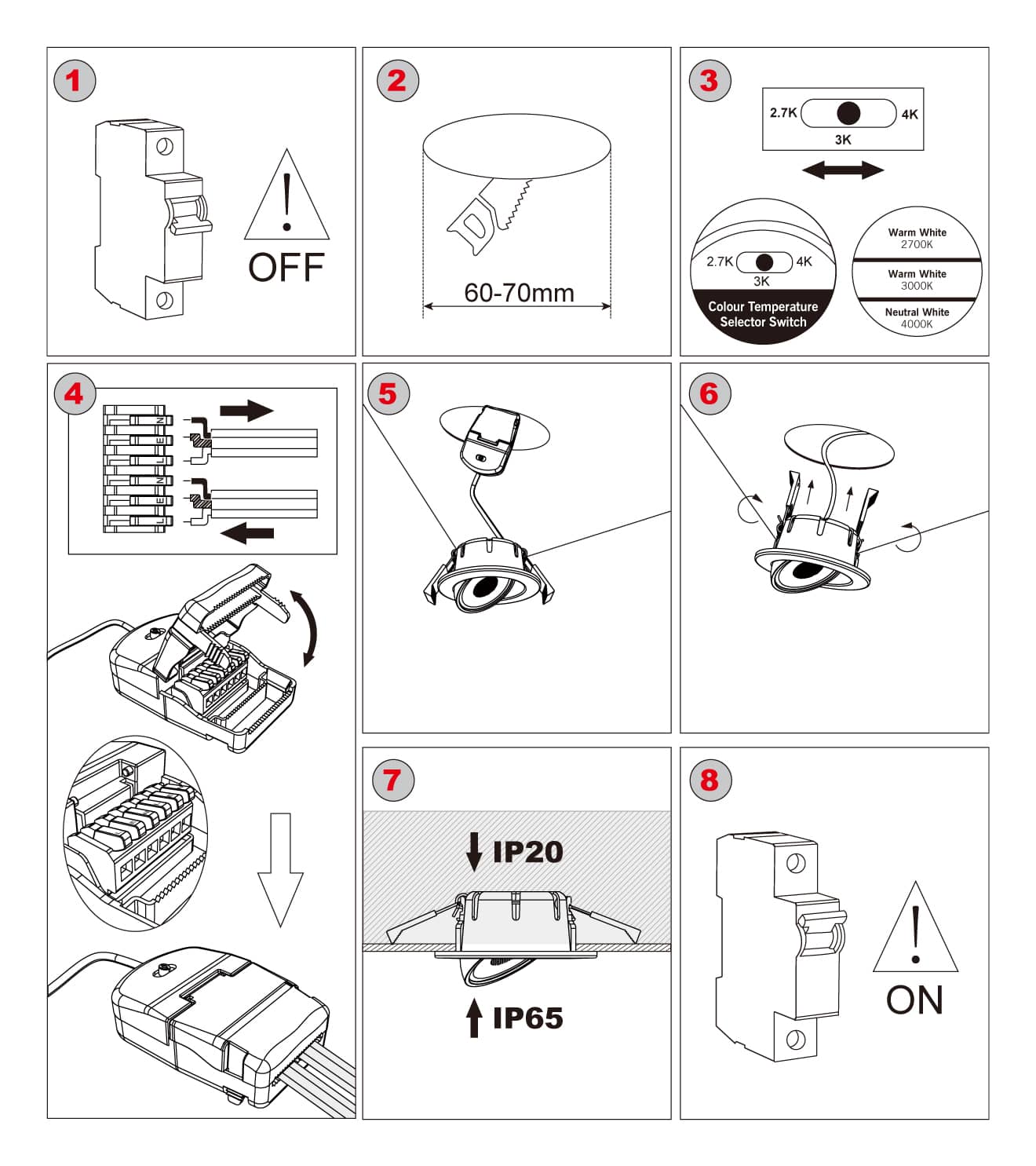

Installation Display

Turn off the power supply before installation, cut a hole (60-70mm diameter) in the ceiling for mounting, select color temperature: 2700K/3000K/4000K or 3000K/4000K/5700K from warm light to cool light, connect the wires securely, insert the light into the hole and secure it, adjust the direction if needed, check the IP rating for installation zones, turn on the wall switch and test the light, ensure all steps are followed for safe and proper installation.





downlight spotlight installation steps
