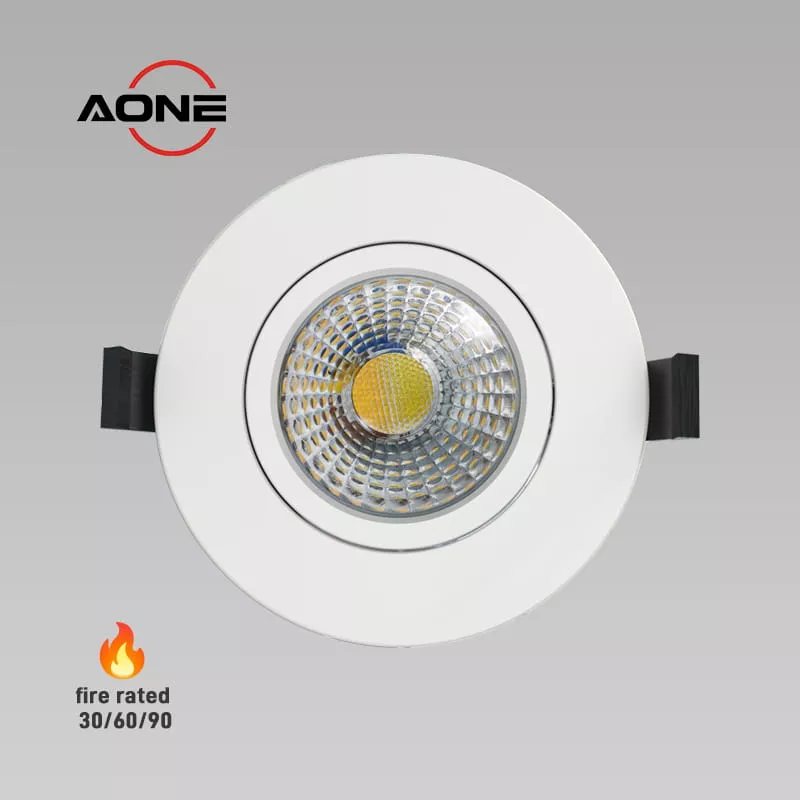

Tiltable Downlight IP65 Ultra-thin Fire Rated 110lm/W Triac Dimmable 6W 4CCT DL98Bpro-2

Tiltable Downlight IP65 Waterproof, Ultra-thin profile at 34mm for any ceiling depth, Fire Rated, 110lm/W 4CCT 2200K-2700K-3000K-4000K with Triac Dimmable External Driver. Easy plug-and-play installation via loop-in/out terminals, no tools needed.

Dimensions：

Ø88 x H34mm,cut-out 70-75mm

Color temperature：

CRI>80, 4CCT 2200K-2700K-3000K-4000K

Dimming or not：

Yes, triac dimmable

Power：

6W~8W

Rated voltage：

AC220-240V

0086 153 6211 8442

Whatsapp: +86 153 6211 8442

lily@aoneled.eu

lnquiry Now

Key Features & Benefits

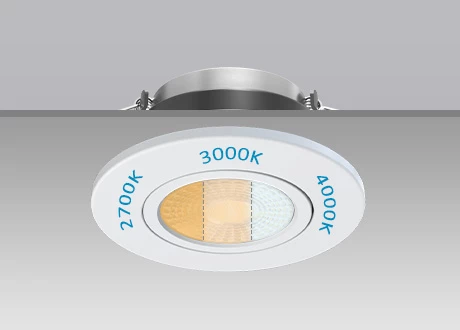

Downlight CRI>80 CRI>90

Up to 110lm/W Lighting Output

High color accuracy CRI/RA >80

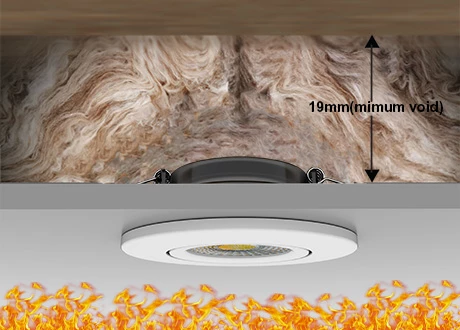

tiltable downlight fire rated

Fire Rated 30/60/90 + Slim Design + Coverable

Safest Design, >=19mm mini voids to suit any ceiling void

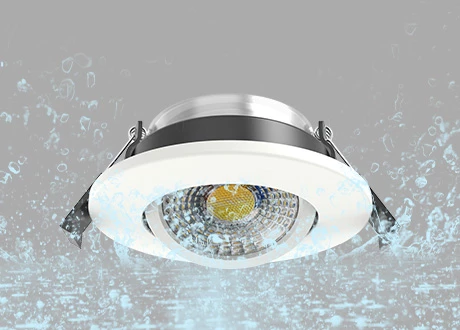

COB downlight IP65 Waterproof

Tiltable IP65 Waterproof

IP65 rated from below the ceiling, perfect for kitchens, bathrooms, hallways...

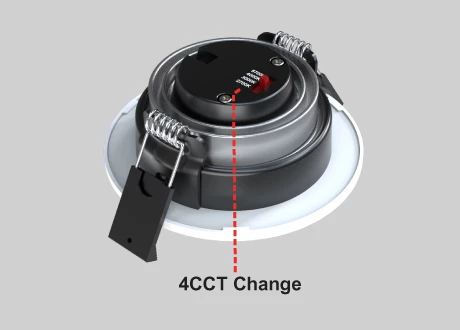

COB downlight dim to warm

4CCT 2200K-2700K/3000K/4000K Select

Switch from warm white to daylight in 1 light, flexible for lighting project

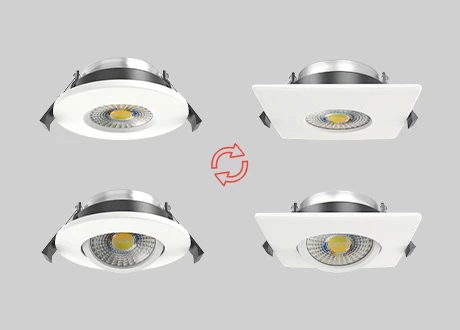

downlight kinds of frame deco

4 Kinds of Surface Cover Interchangeable

Colorful ways of Fixed Round, Fixed Square, Tilt Round, Tilt Square

downlight isolate driver loop in/out terminal

Triac Dimmable Driver with Quick Junction Box

Fully dimmable, Plug-and-play connector with quick wiring terminals for easy installation

Technical Specifications

Model	DL98Bpro-2	Beam Angle	38° or 60°
Protection Class	Class II / IP65 / IK08	Dimming	Trailing edge and leading edge
Power	6W~8W	Bezel Color	Black, White, Polished Chrome, Brushed Nickel
Input	AC220-240V 50/60Hz	Color Temperature	2200K-2700K/3000K/4000K
Lumen	660lm~880lm	Size	Dia88mm, Cutout: 70-75mm
Efficiency	110lm/W	Certification	CE, UKCA, RoHS
Life Time	>50000 hours L70B10	Warranty	5 Years
Fixed or tiltable	±25° Rotation	Coverable	Yes

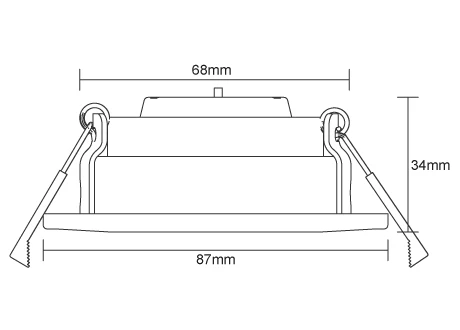

Diameter 88mm, height 34mm, hole opening range 70-75mm

Diameter 87mm, height 40mm, hole opening 68-75mm

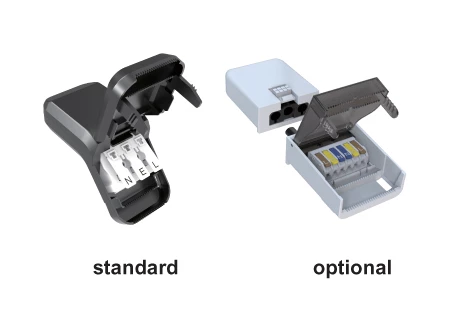

downlight junction boxes

Different Driver Option, 1st-2rd fixing connectors, loop-in & loop-out terminal for simple installation

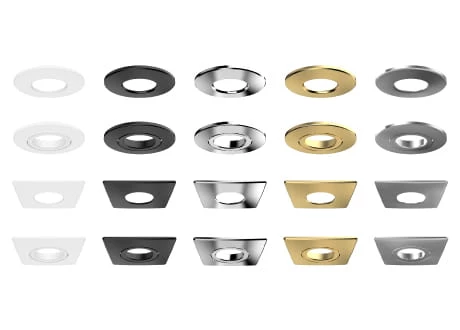

downlight bezel interchangeable

4 Kinds Round and Square Bezel Color Interchangeable: white, black, polished chrome, brass, brushed nickel

COB downlight got CE, ROHS, IP65 certificates, 5 years warranty

downlight CRI>90 TUYA DTW 0-10V DALI DC24V

✔️ IP65 Waterproof: Resists moisture from below, ideal for bathrooms, kitchens, or covered outdoor areas.

✔️ 110lm/W Efficiency: Bright, uniform light with low energy costs.

✔️ Premium LED Source: Flicker-free, 50,000+ hour lifespan.

✔️ 38° or 60° Beam Angle:

38°: Focused beam for precise accent lighting (e.g., artwork, retail displays).
60°: Wider beam for ambient lighting (e.g., living rooms, hallways).

✔️ Tiltable: Adjustable up to 25° each side.

✔️ Tool-Free Install: Plug-and-play with quick L, E, N, N, E, L terminals for loop-in loop-out wiring.

✔️ Certification : CE, ROHS, UKCA, CB certificated with 5-year warranty

Production Process

A-ONE is a professional LED lighting factory with 17 years of manufacturing experience. We feature independent R&D, offering free mold opening, test certifications. Equipped with automated & scientific production lines, each light undergoes 100% aging tests and strict quality checks. Enjoy 5-7 years warranty. Our process covers communication, design, sampling, quality/testing, material prep, production, function/EMC tests, aging, packaging & OQC. Ideal for reliable, high-quality LED lighting solutions.

Quality is our lifeline. We strictly enforce comprehensive testing and certification for every new product in collaboration with top-tier laboratories (SGS/TUV/DEKRA), covering CE-LVD, CE-EMC, CB, IP waterproof, SGS fire-rated, RED, SGS air-tightness, 850°C glow-wire, IK rating, Acoustic Rating, 50,000+ hours lifespan, ErP, ROHS, REACH. As a professional LED lighting manufacturer, we guarantee superior product quality through rigorous testing procedures and international certification standards.

Beyond third-party certifications with SGS/TUV/DEKRA, our in-house laboratory features 14+ advanced testing devices including EVERFINE Integrating Sphere, IES Test Equipment, EMC Chamber, IP6X waterproof Checking, Climate Chamber, Computer Aging System, and specialized equipment for dielectric, insulation, salt spray, surge, vibration and drop tests. This comprehensive testing capability ensures every finished product meets the highest quality standards from development to delivery.

Applicable Scenarios

Perfect for residential, hospitality, commercial office applications

downlights for living areas

Living

Recessed structure and smooth dimming 10%-100% come out an artistic atmosphere and create your individual LED recessed luminaire.

downlights for shopping areas

Shopping

Warm light to cool light, high efficiency CRI(RA) 80+ or 90+ MacAdams<6 best display the products.

downlights for kitchen areas

Kitchen

Waterproof & Dustproof, practical downlight/spotlight can provide directional lighting to kitchen or worktops

downlights for bathroom areas

Bathroom

Front bezel is IP65 waterproof to suit for wet locations, zone 2 and zone 3.

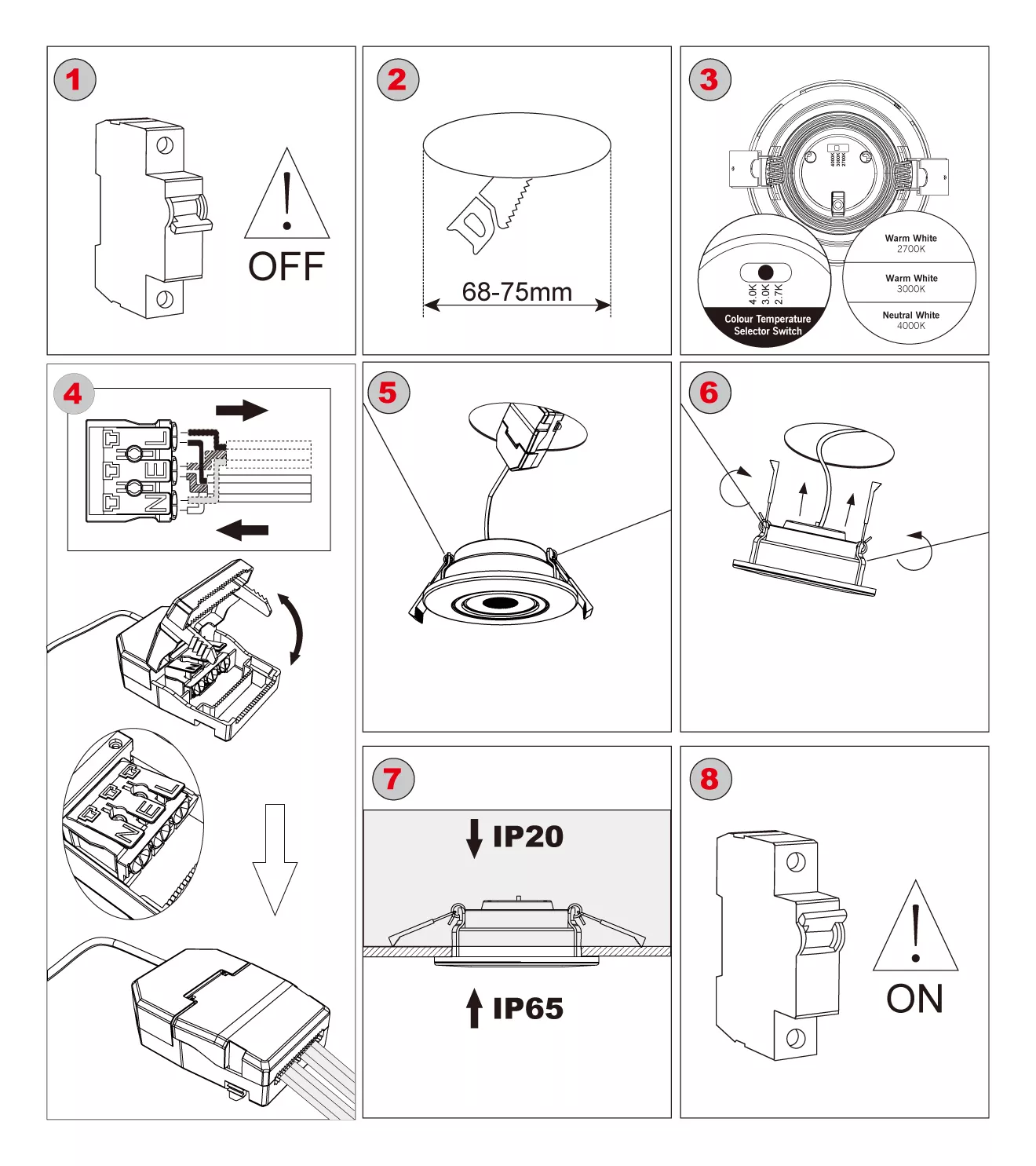

Installation Display

Turn off the power supply before installation, cut a hole (68-75mm diameter) in the ceiling for mounting, select color temperature: 2700K/3000K/4000K/5700K from warm white to cool white, connect the wires securely, insert the light into the hole and secure it, adjust the direction if needed, check the IP rating for installation zones, turn on the wall switch and test the light, ensure all steps are followed for safe and proper installation.

downlight installation steps

✔️ Why settle for ordinary lighting? Choose this IP65 LED downlight for vibrant, eye-safe illumination that lasts.

✔️ Where can it shine? Perfect for bathrooms, kitchens, retail spaces, or anywhere needing waterproof, high-quality light.

✔️ Who benefits? Homeowners, designers, and businesses seeking energy efficiency and style.

✔️ What sets it apart? Its CRI >92, RG1 safety, and 38° or 60° beam options ensure precision or ambiance, all backed by CE, RoHS, fire-rated certifications, and a 5-year warranty.

✔️ Ready to elevate your lighting? Shop the 8W COB LED Downlight at AoneLED today!
