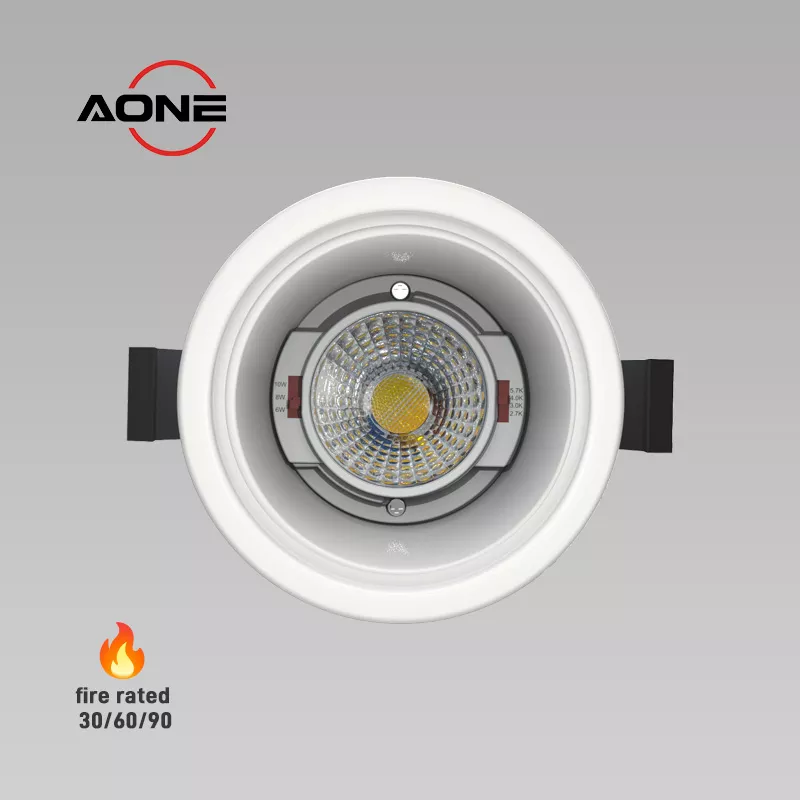

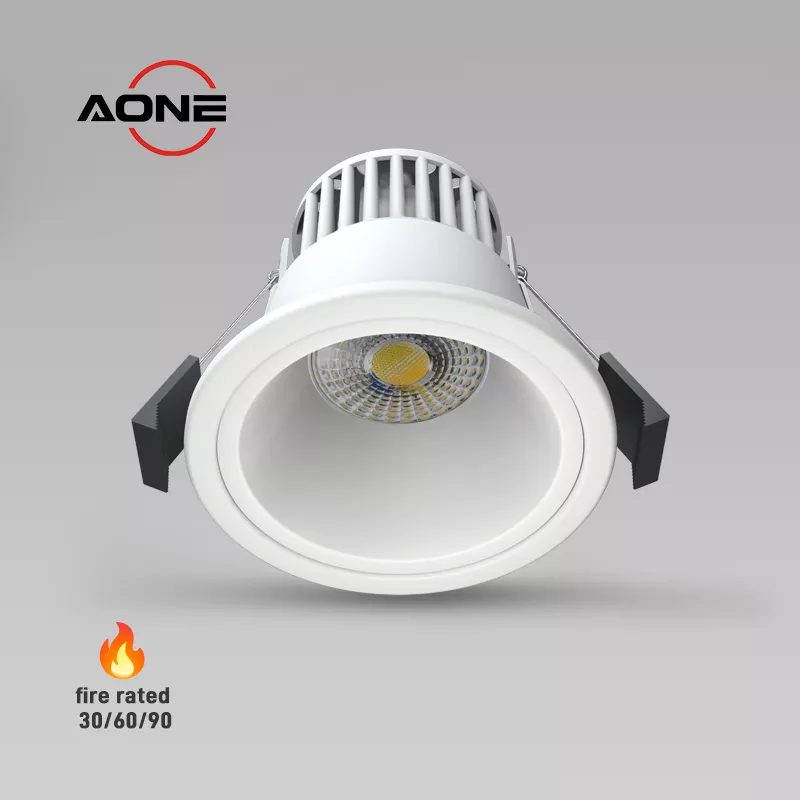

Trimless Fire Rated LED Downlight IP65 Low Glare 4CCT 6W/8W/10W Dimmable LED Spotlight DL02M12
Dimensions：
Ø95 x H90mm,cut-out 75-80mm (standard) | Ø125 x H90mm,cut-out 85-90mm (trimless)
Power：
5W/8W
Color temperature：
4CCT 2700K-3000K-4000K-5700K
Dimming or not：
Yes, triac dimmable
Beam angle：
38° or 60°
Rated voltage：
AC220-240V
Key Features & Benefits
Anti-glare
Low glare UGR<19 design to create visual comfort.

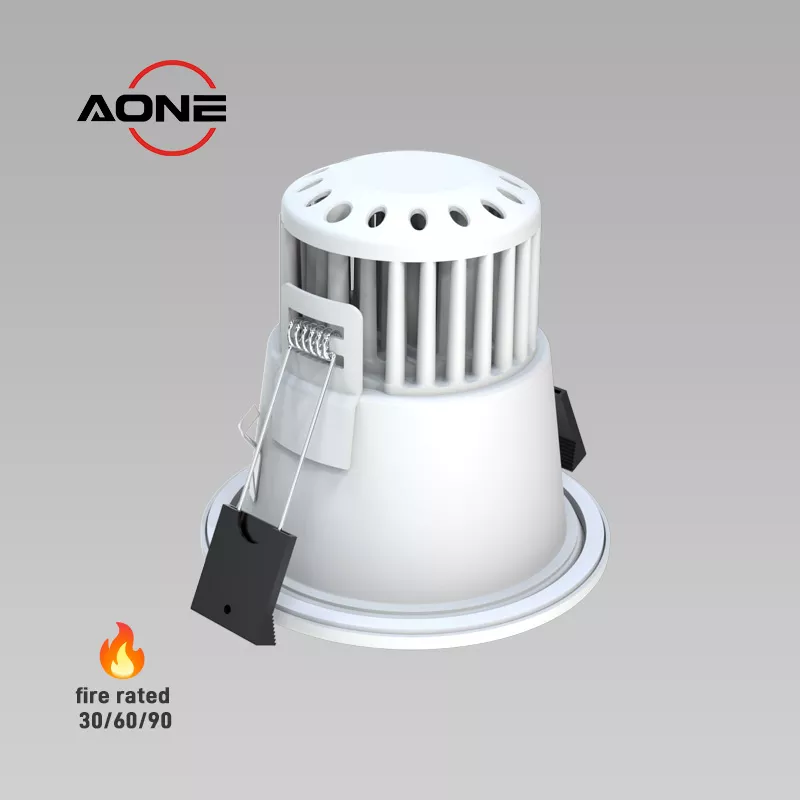

Fire-rated / Coverable

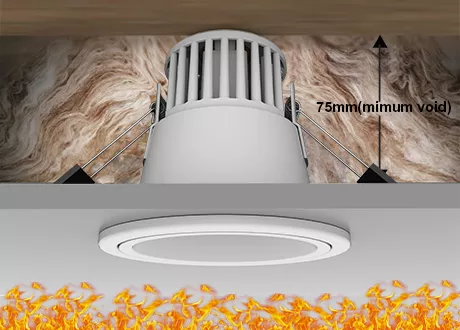

30,60,90min for timber, web and staircraft i-joists, coverable, min void 75mm.

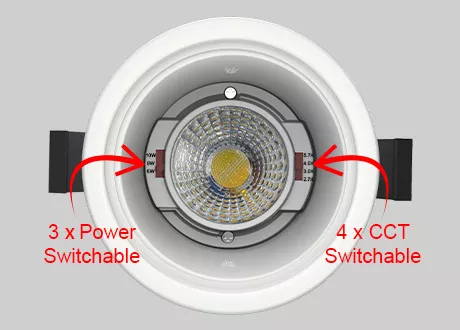

4 CCT And 6W/8W/10W Switchable
The 6W/8W/10W power and 4CCT downlight are easily distinguished from the front of the LED downlight.
Various Color Options Reflector / Bezel
5 colors interchangeable reflector / bezel available in white/ black/ brass/ polished chrome/ brushed nickel. Trimless bezel optional.
38° / 60° Beam Angle Optional
High quality of LED chip and lens, offering RA>80 or RA>90 version

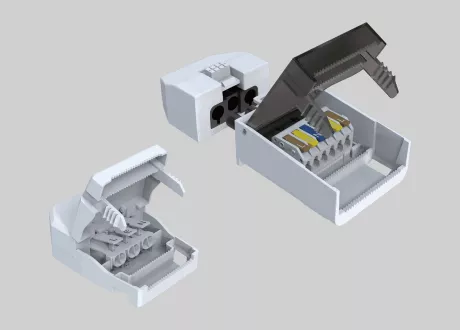

Fast Installation Via Loop In/Out Terminal
Plug-and-play junction box with a 3-power switch reduces installation time by 50%.
Technical Specifications
| Model | DL02M12 | Beam Angle | 38°/ 60° |
| Protection Class | Class II / IP65 / IK08 | Dimming | Trailing edge and leading edge |
| Power | 6W/8W/10W Switchable | Color | Black, White, Brass, Polished Chrome, Brushed Nickel |
| Input | AC220-240V 50/60Hz | Color Temperature | 2700K/3000K/4000K/5700K |
| Lumen | 450/720/900 | Size |
Dia 95mm, Cutout: 75-80mm (standard downlight) Dia 125mm, Cutout: 85-90mm (trimless downlight) |
| Efficiency | 90lm/W | Certification | CE, UKCA, RoHS |
| Life Time | >50000 hours | Warranty | 5 Years |
| Fire Rated | Yes | Coverable | Yes |

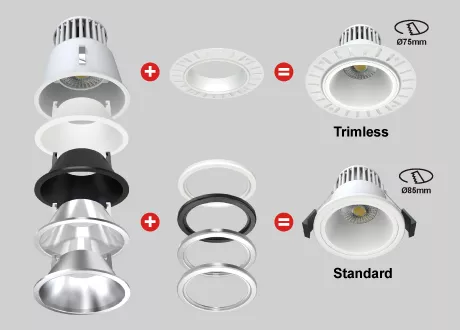

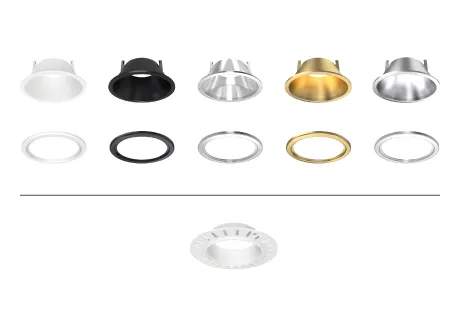

5 colors deep cup reflector, bezel/trim interchangeable: white, black, polished chrome, matt brass, brushed nickel. Trimless is optional.
Standard downlight: Diameter 95mm, height 90mm, hole opening range 75-80mm.

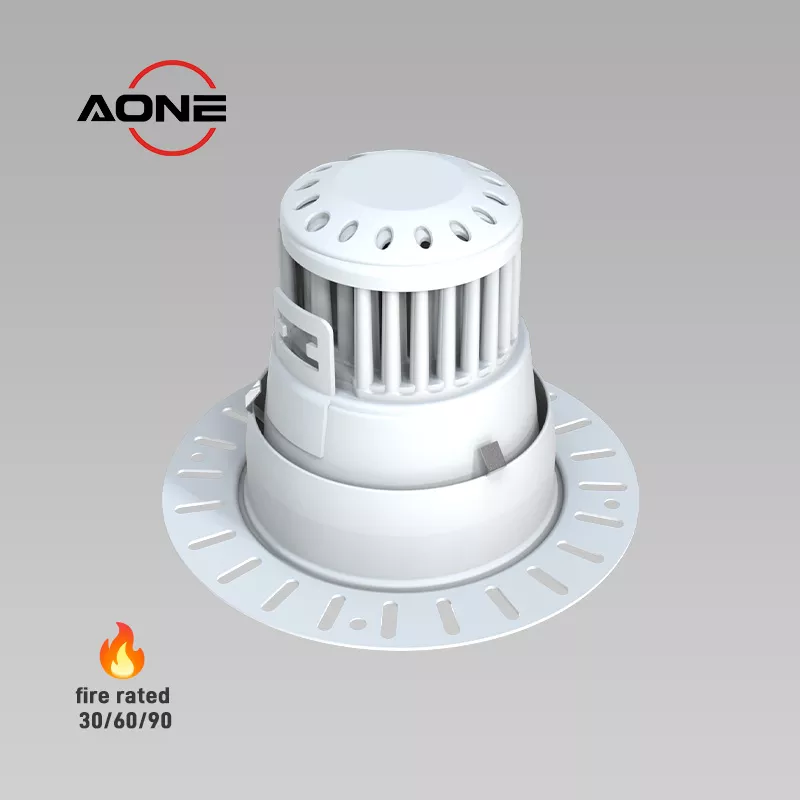

Trimless downlight: Diameter 125mm, height 90mm, hole opening range 85-90mm.

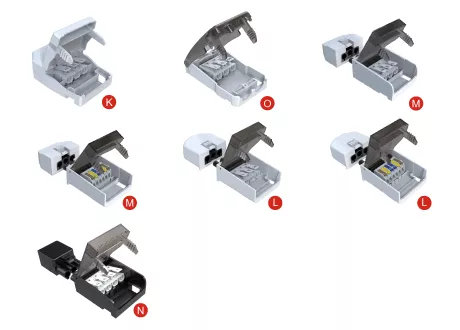

7 choice of junction boxes, loop-in & loop-out terminal provides a simple installation.

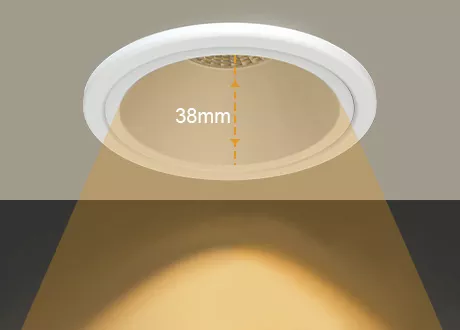

Deep cup anti-glare structure and smooth dimming 10%-100% come out an artistic atmosphere and create your individual LED recessed luminaire.
Warm light to cool light, high efficiency CRI(RA) 80+ or 90+ MacAdams<6 best display the products.
Waterproof & Dustproof, practical downlight/spotlight can provide directional lighting to kitchen island or worktops
Front bezel is IP65 waterproof to suit for wet locations, zone 2 and zone 3.
Production Process
A-ONE is a professional LED lighting factory with 17 years of manufacturing experience. We feature independent R&D, offering free mold opening, test certifications. Equipped with automated & scientific production lines, each light undergoes 100% aging tests and strict quality checks. Enjoy 5-7 years warranty. Our process covers communication, design, sampling, quality/testing, material prep, production, function/EMC tests, aging, packaging & OQC. Ideal for reliable, high-quality LED lighting solutions.
Quality is our lifeline. We strictly enforce comprehensive testing and certification for every new product in collaboration with top-tier laboratories (SGS/TUV/DEKRA), covering CE-LVD, CE-EMC, CB, IP waterproof, SGS fire-rated, RED, SGS air-tightness, 850°C glow-wire, IK rating, Acoustic Rating, 50,000+ hours lifespan, ErP, ROHS, REACH. As a professional LED lighting manufacturer, we guarantee superior product quality through rigorous testing procedures and international certification standards.
Beyond third-party certifications with SGS/TUV/DEKRA, our in-house laboratory features 14+ advanced testing devices including EVERFINE Integrating Sphere, IES Test Equipment, EMC Chamber, IP6X waterproof Checking, Climate Chamber, Computer Aging System, and specialized equipment for dielectric, insulation, salt spray, surge, vibration and drop tests. This comprehensive testing capability ensures every finished product meets the highest quality standards from development to delivery.

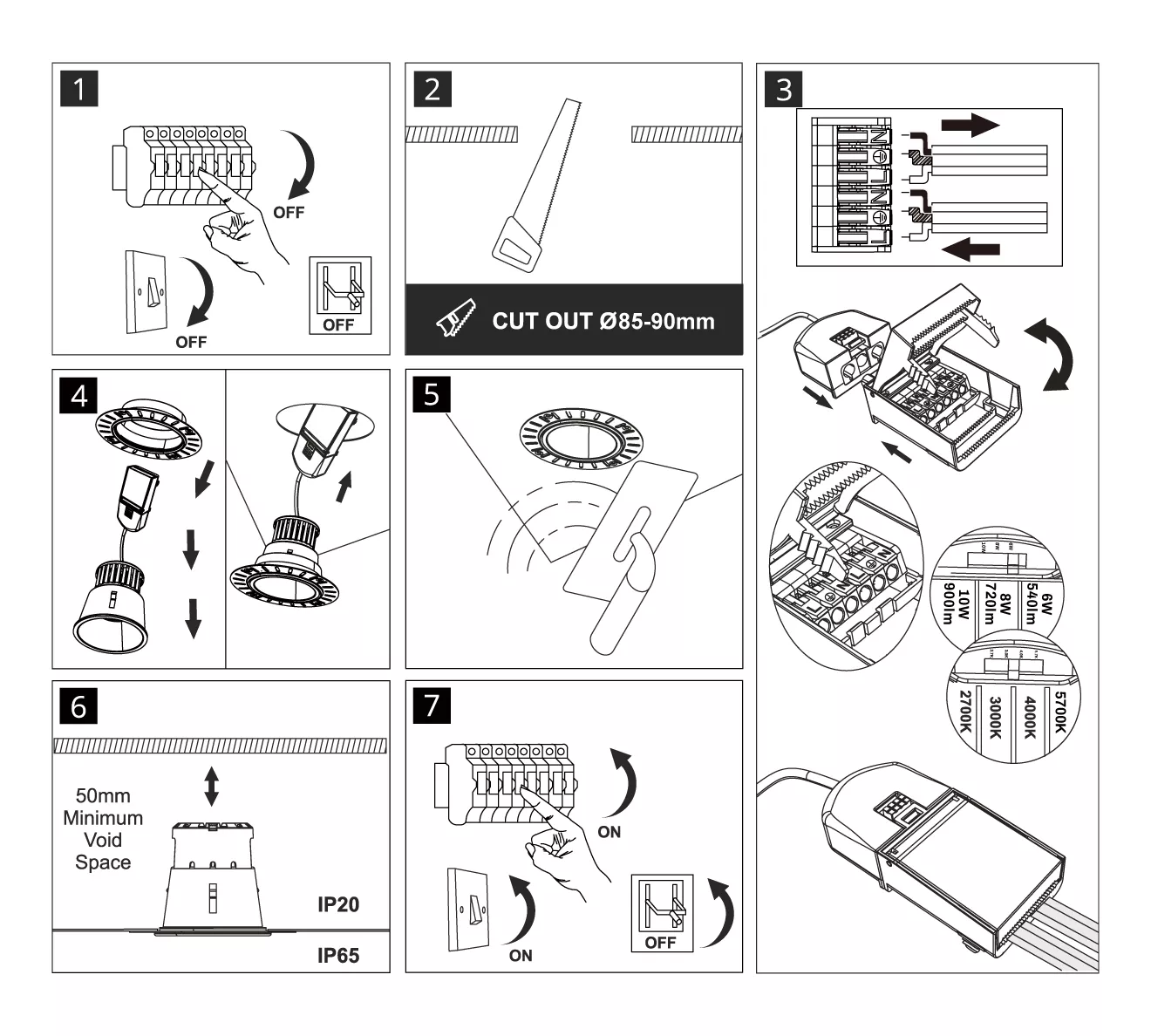

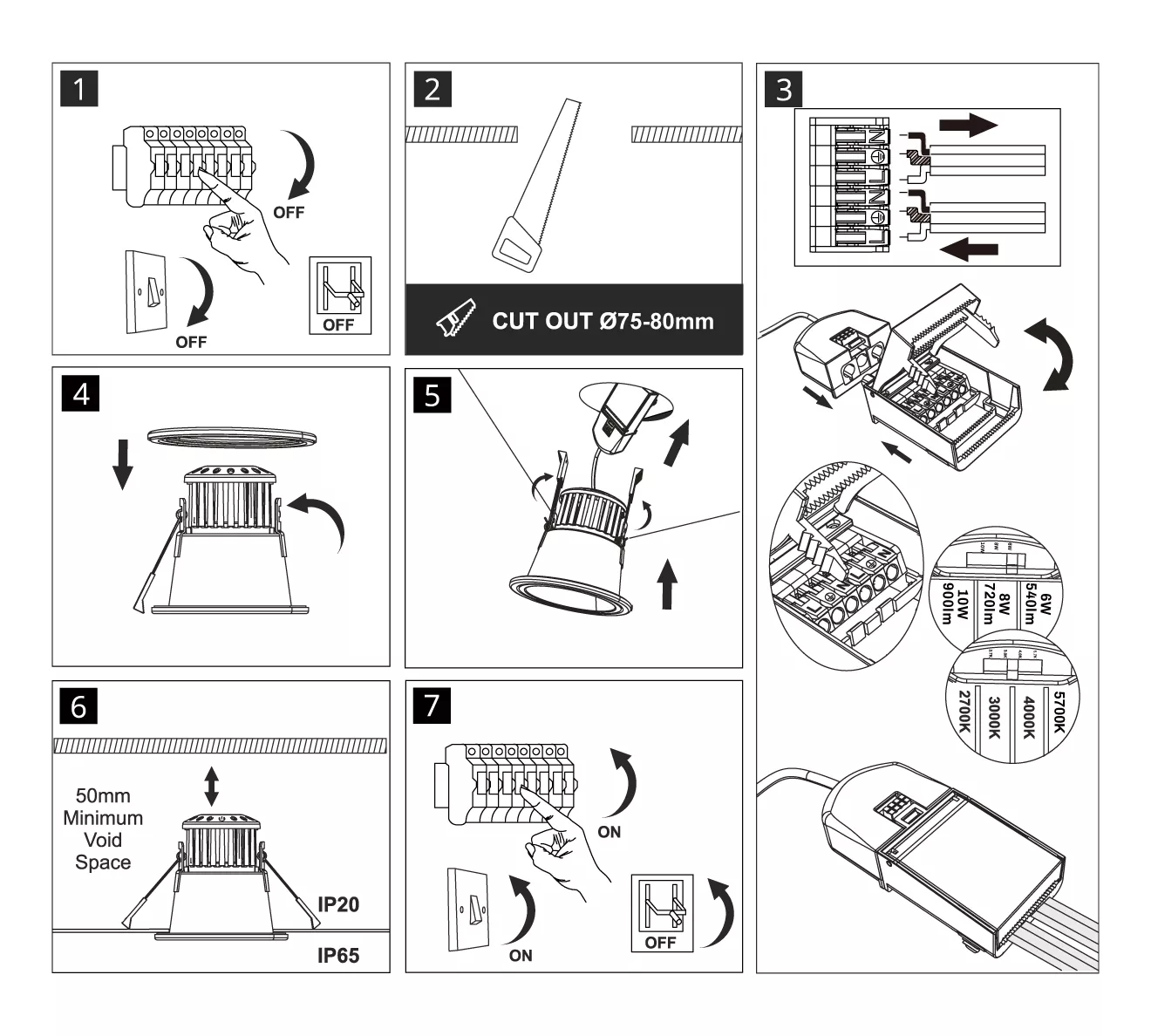

Installation Display
