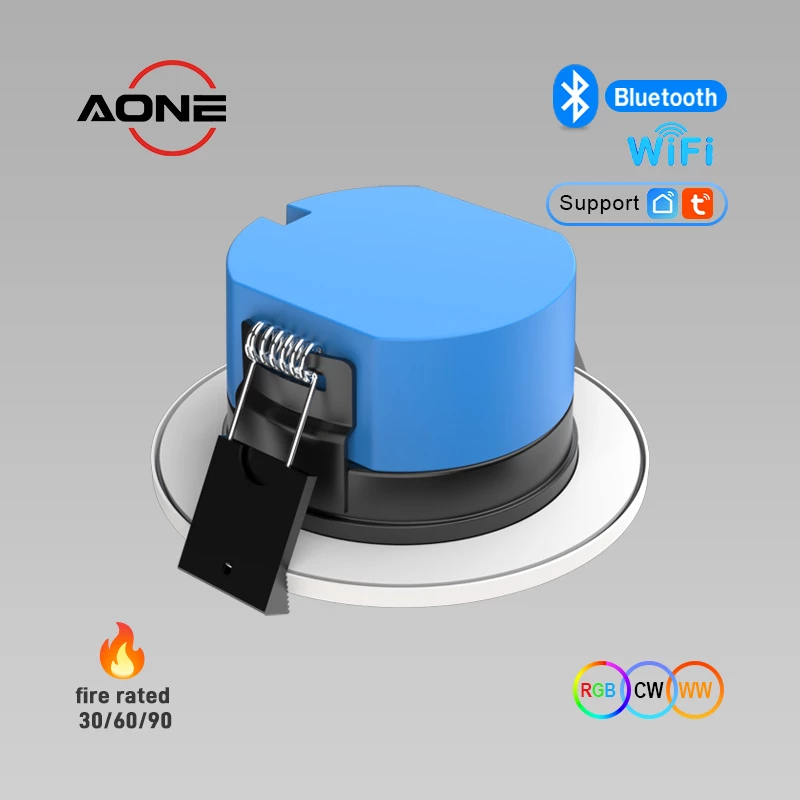

Tuya RGB × Firerated Smart Control Downlight WiFi/ Bluetooth Support DL190 Tuya
Dimensions：
Ø90 x H44mm,cut-out 68-75mm
Power：
8W
Function：
WiFi, Bluetooth supported
Dimming or not：
Yes, triac dimmable
Beam angle：
38° or 60°
Rated voltage：
AC220-240V
Key Features & Benefits
High-uniformity Lighting
100 lm/W uniformity ideal for home and retail lighting – maintain visibility while slashing energy costs.

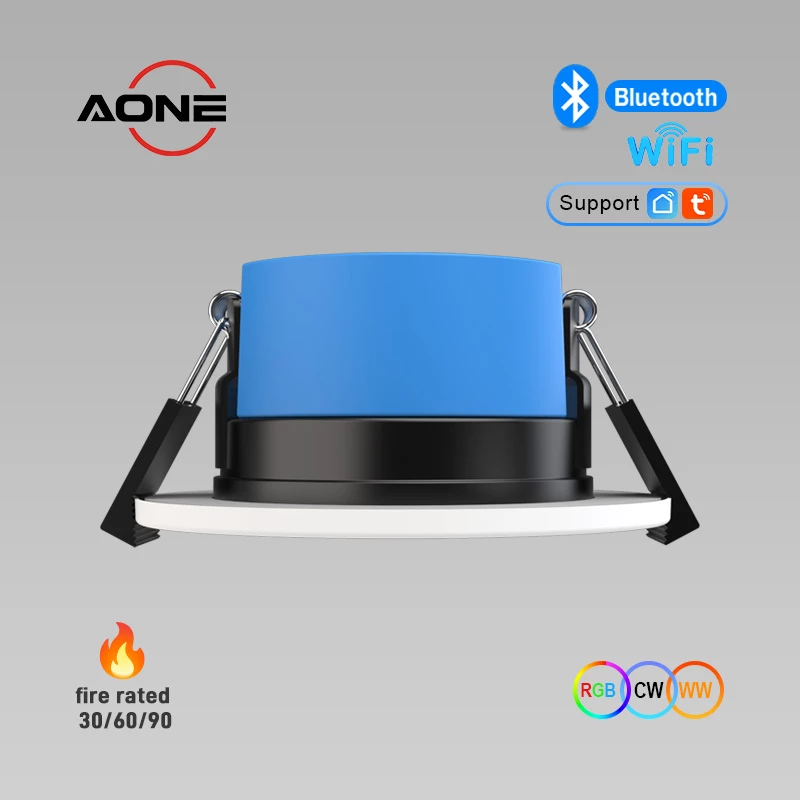

Fire-rated / Coverable
30,60,90min for timber, web and staircraft i-joists, coverable, min void 30mm
Tuya Smart Control for Smart Life
Tuya Smart Control, RGB CW WW adjustable via App, WiFi/ Bluetooth support.

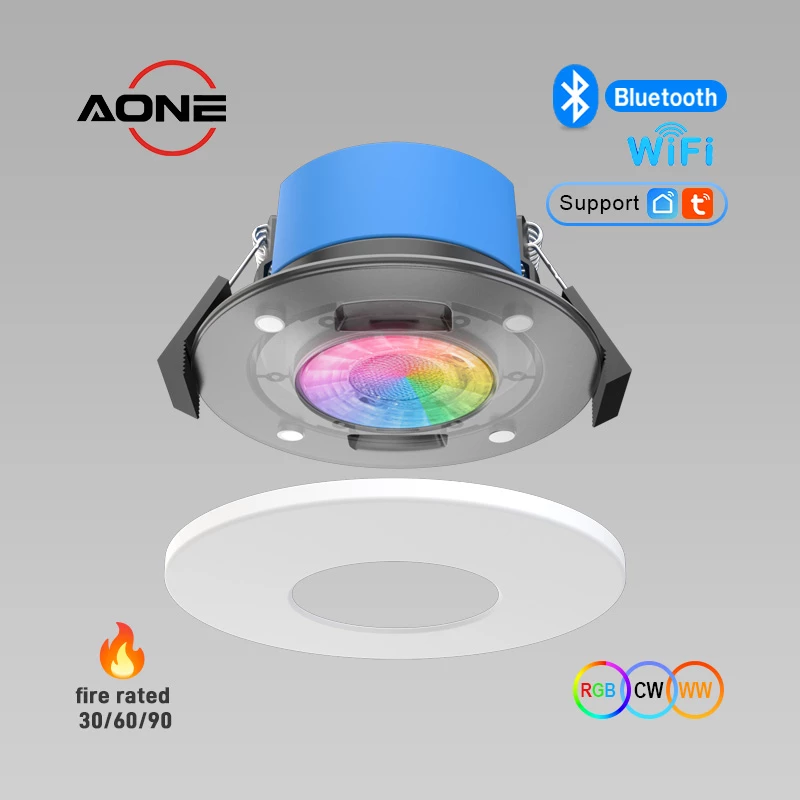

Magnetic Bezel Interchangeable
6 × colorways magnetic interchangeable to suit different decoration styles.

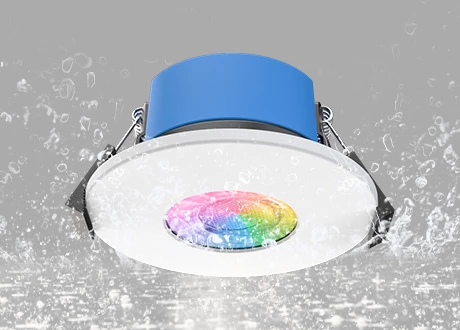

IP65 Waterproof and Dustproof
IP65 waterproof below the ceiling, suitable for wet areas, indoor use only.
Fast Installation Via Loop in/out Terminal
Plug-and-play junction box reduces installation time by 50%
Technical Specifications
| Model | DL190 Tuya | Beam Angle | 38° or 60° |
| Protection Class | Class I / IP65 / IK08 | Dimming | Trailing edge and leading edge |
| Power | 8W | Bezel Color | White, Matt Black, Polished Chrome, Brushed Chrome, Brushed Brass, Antique Brass |
| Input | AC230V 50Hz | Color Temperature | 4000K |
| Lumen | 800lm | Size | Dia 90mm, Cutout: 68-75mm |
| Efficiency | 100lm/W | Certification | CE, UKCA, RoHS |
| Life Time | >50000 hours | Warranty | 5 Years |
| Fire Rated | Yes | Coverable | Yes |

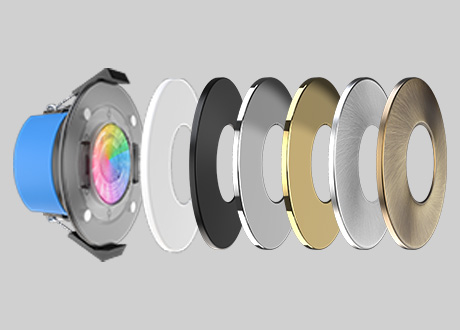

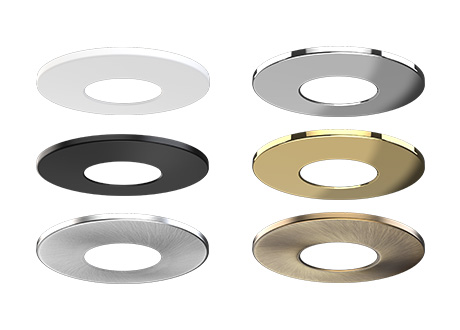

Magnetic bezel/trim interchangeable: white, matt black, polished chrome, brushed chrome, brushed brass, antique brass

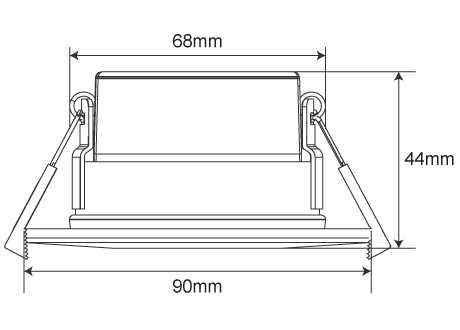

Diameter 90mm, height 44mm, hole opening range 68-75mm
7 choice of junction boxes, 1st- 2nd fixing connectors, loop-in & loop-out terminal provides a simple installation

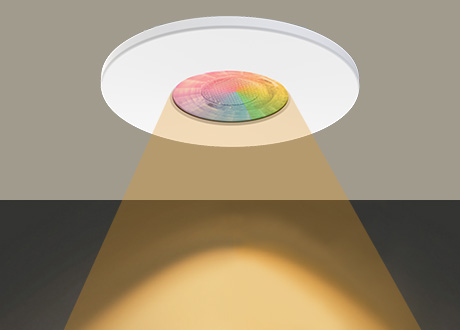

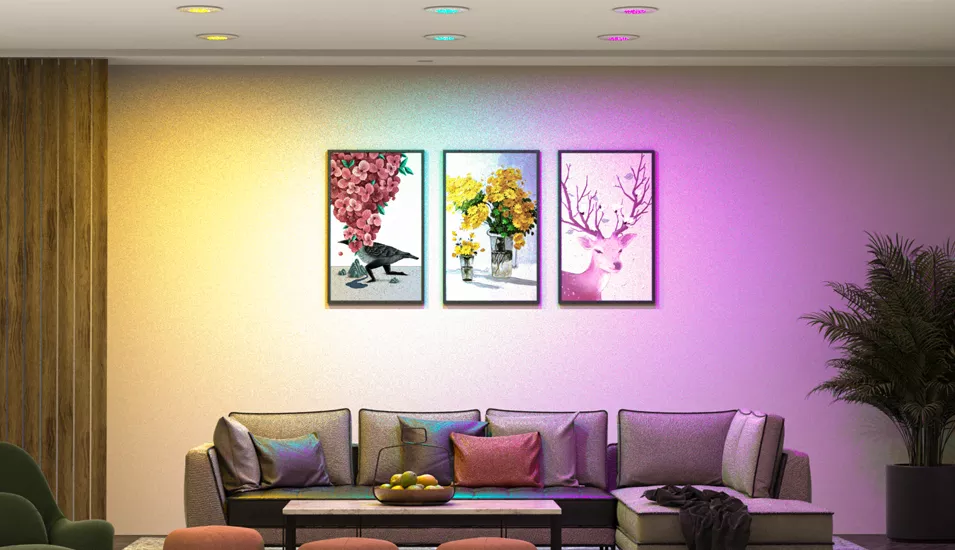

100lm/W, high-uniformity lighting ensures sufficient brightness, giving visual comfort. Tuya Smart, suitable for different dynamic scenes like party, movie watching, romantic dinner.

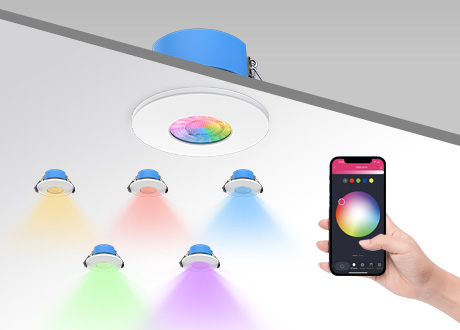

RGB+CCT adjustable via App making different colors lighting switchable,CRI(RA) 80+ or 90+ MacAdams<6 best display the products.

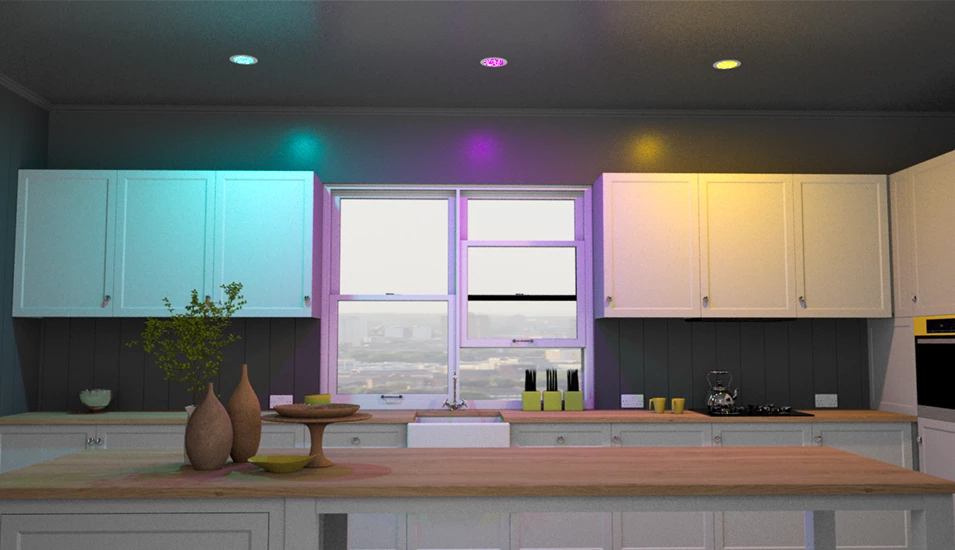

Waterproof & Dustproof, practical downlight/spotlight can provide directional lighting to kitchen island or worktops.

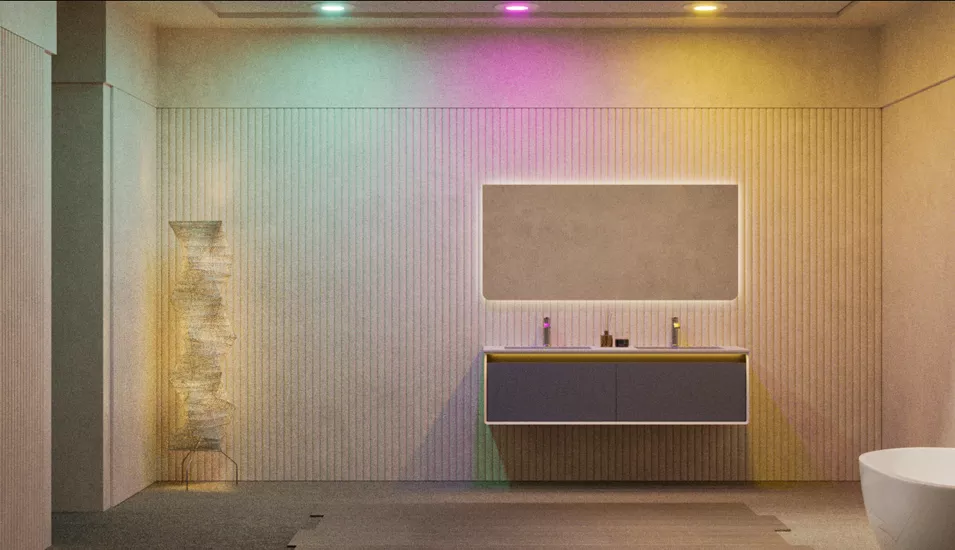

IP65 waterproof below the ceiling, suitable for wet locations, zone 2 and zone 3, making your lighting more safe and durable.
Production Process
A-ONE is a professional LED lighting factory with 17 years of manufacturing experience. We feature independent R&D, offering free mold opening, test certifications. Equipped with automated & scientific production lines, each light undergoes 100% aging tests and strict quality checks. Enjoy 5-7 years warranty. Our process covers communication, design, sampling, quality/testing, material prep, production, function/EMC tests, aging, packaging & OQC. Ideal for reliable, high-quality LED lighting solutions.
Quality is our lifeline. We strictly enforce comprehensive testing and certification for every new product in collaboration with top-tier laboratories (SGS/TUV/DEKRA), covering CE-LVD, CE-EMC, CB, IP waterproof, SGS fire-rated, RED, SGS air-tightness, 850°C glow-wire, IK rating, Acoustic Rating, 50,000+ hours lifespan, ErP, ROHS, REACH. As a professional LED lighting manufacturer, we guarantee superior product quality through rigorous testing procedures and international certification standards.
Beyond third-party certifications with SGS/TUV/DEKRA, our in-house laboratory features 14+ advanced testing devices including EVERFINE Integrating Sphere, IES Test Equipment, EMC Chamber, IP6X waterproof Checking, Climate Chamber, Computer Aging System, and specialized equipment for dielectric, insulation, salt spray, surge, vibration and drop tests. This comprehensive testing capability ensures every finished product meets the highest quality standards from development to delivery.
Installation Display
