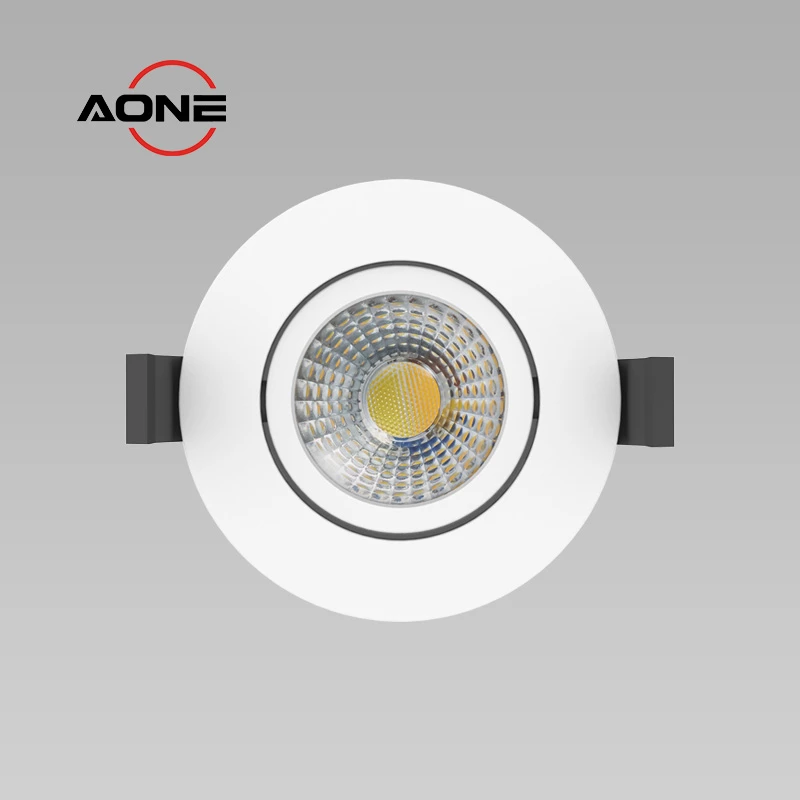

IP65 Tiltable LED Spotlight Alumimun Surface CCT Triac Dimmable DL165-85
Dimensions：
Ø86 x H38mm,cut-out 68-75mm
Color temperature：
2200K/2700K/3000K/4000K
Dimming or not：
Yes, triac dimmable
Power：
6W
Rated voltage：
AC220-240V
Key Features & Benefits
SMD LEDs,
Delivers high light output at 110 lm/W
Coverable

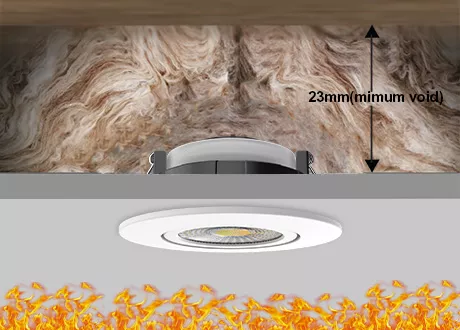

Aluminum surface cover, easily suit any low ceiling depth > 23mm

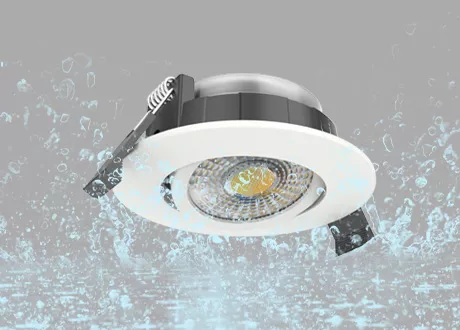

IP65 Waterproof
IP65 rated from below the ceiling, perfect for kitchens, bathrooms, hallways, and more.

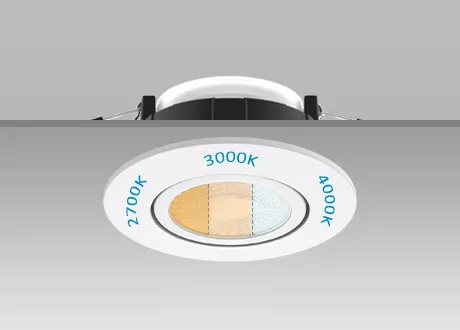

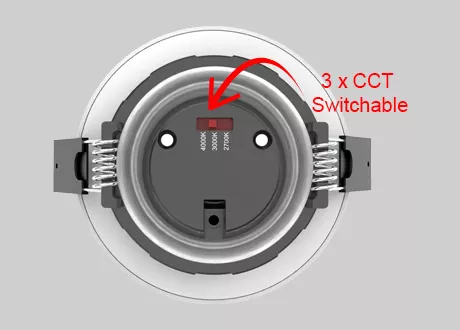

CCT Dip Switch
CCT switching between (2200K-2700K), neutral (3000K), or cool white (4000K–5700K).
38° or 60° Beam Angle optional
38° focused beam for accent lighting, 60° wider beam for broader coverage

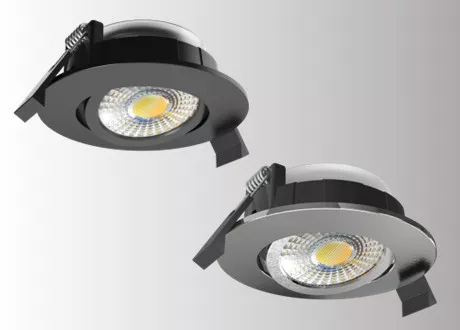

Available Black and Brushed Chrome Surface
Surface available in matt black or brushed chrome color, Pass 24h salt spray
Technical Specifications
| Model | DL165-86 | Beam Angle | 38° or 60° |
| Protection Class | Class II/III / IP65 / IK08 | Dimming | Trailing edge and leading edge |
| Power | 6W | Bezel Color | White, Black, Polished Chrome, Brushed Nickel |
| Input | AC220-240V 50/60Hz | Color Temperature | 2200K/2700K/3000K/4000K |
| Lumen | 660lm | Size | Dia86mm, Cutout: 68-75mm |
| Efficiency | 120lm/W | Certification | CE, UKCA, RoHS ( DERKA certification) |
| Life Time | >50000 hours L70B10 | Warranty | 5 Years |
| Fire Rated | Yes | Coverable | Yes |

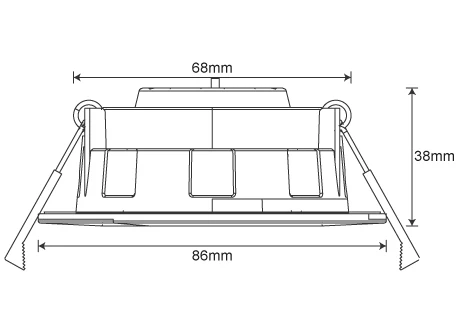

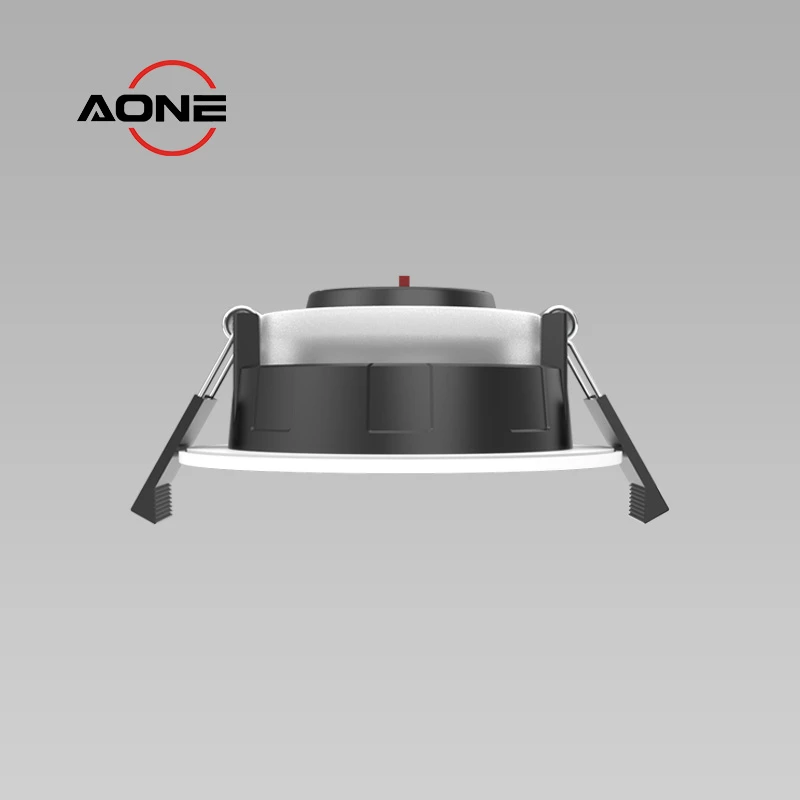

Diameter 86mm, height 38mm, hole opening 68-75mm
Isolated SELV Driver, Class III, DERKA Certification, Patent Design

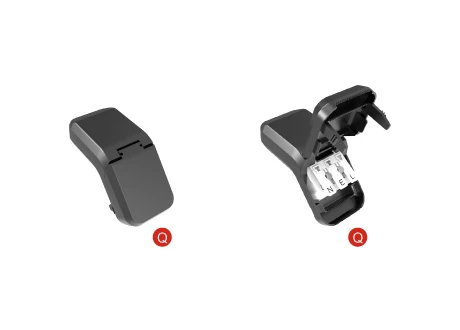

Easy installation with N E L terminals for simple loop in/out wiring
✔️ 128lm/W Efficiency: Bright, uniform light with low energy costs.
✔️ IP65 Waterproof: Resists moisture from below, ideal for bathrooms, kitchens, or covered outdoor areas.
✔️ Tiltable Aluminun Surface: Good metal cover, pass 24 hours salt spraying test
✔️ 38° or 60° Beam Angle:
- 38°: Focused beam for precise accent lighting (e.g., artwork, retail displays).
- 60°: Wider beam for ambient lighting (e.g., living rooms, hallways).
✔️ CCT Selectable : Switching between (2200K-2700K), neutral (3000K), or cool white (4000K–5700K).
✔️ Tool-Free Install: Easy Installation with quick L, E, N terminals for loop-in loop-out wiring.
✔️ Certification : CE, ROHS, UKCA, CB certificated ( DERKA LAB) with 5-year warranty
Production Process
A-ONE is a professional LED lighting factory with 17 years of manufacturing experience. We feature independent R&D, offering free mold opening, test certifications. Equipped with automated & scientific production lines, each light undergoes 100% aging tests and strict quality checks. Enjoy 5-7 years warranty. Our process covers communication, design, sampling, quality/testing, material prep, production, function/EMC tests, aging, packaging & OQC. Ideal for reliable, high-quality LED lighting solutions.
Quality is our lifeline. We strictly enforce comprehensive testing and certification for every new product in collaboration with top-tier laboratories (SGS/TUV/DEKRA), covering CE-LVD, CE-EMC, CB, IP waterproof, SGS fire-rated, RED, SGS air-tightness, 850°C glow-wire, IK rating, Acoustic Rating, 50,000+ hours lifespan, ErP, ROHS, REACH. As a professional LED lighting manufacturer, we guarantee superior product quality through rigorous testing procedures and international certification standards.
Beyond third-party certifications with SGS/TUV/DEKRA, our in-house laboratory features 14+ advanced testing devices including EVERFINE Integrating Sphere, IES Test Equipment, EMC Chamber, IP6X waterproof Checking, Climate Chamber, Computer Aging System, and specialized equipment for dielectric, insulation, salt spray, surge, vibration and drop tests. This comprehensive testing capability ensures every finished product meets the highest quality standards from development to delivery.
Recessed structure and smooth dimming 10%-100% come out an artistic atmosphere and create your individual LED recessed luminaire.
Warm light to cool light, high efficiency CRI(RA) 80+ or 90+ MacAdams<6 best display the products.
Waterproof & Dustproof, practical downlight/spotlight can provide directional lighting to kitchen or worktops
Front bezel is IP65 waterproof to suit for wet locations, zone 2 and zone 3.

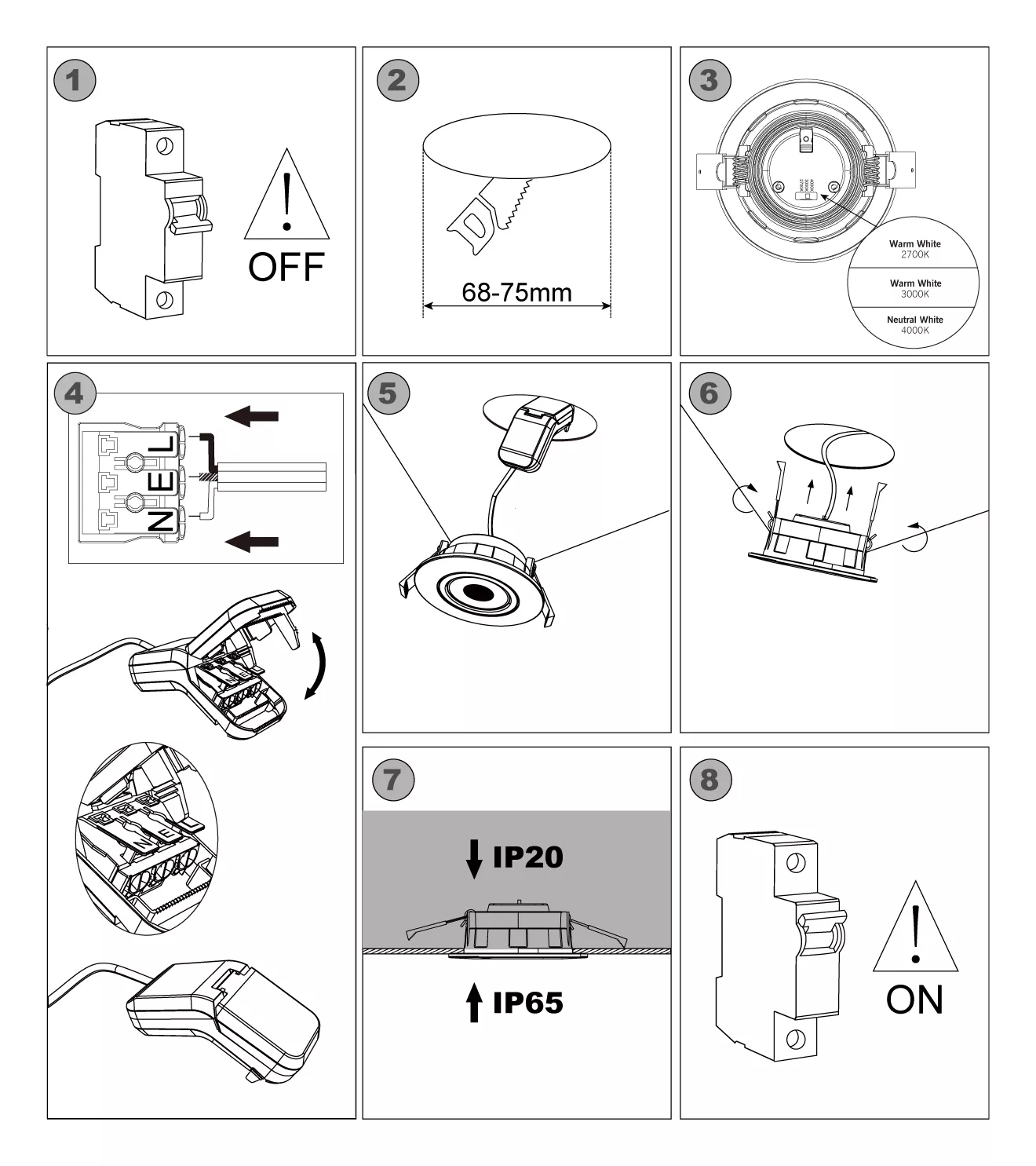

Installation Display
Top 5 FAQs
Q 1. What is the price and minimum order quantity for the DL165 LED Downlight?
The Ultra Slim Tiltable LED Downlight DL165 is priced at USD 4.5 per unit, with a minimum order quantity (MOQ) of 300 pieces. International shipping is available—contact us for details.
Q 2. Is the DL165 LED Downlight suitable for bathrooms and kitchens?
Yes! The DL165 features an IP65 waterproof rating and an ultra slim design, making it perfect for damp or wet areas like bathrooms, kitchens, outdoor soffits, and commercial spaces worldwide.
Q 3. What makes the DL165 LED Downlight easy to install?
This spotlight is designed with an aluminum cover for durability and uses a simple loop in / loop out terminal, making installation fast and easy for electricians and installers globally.
Q 4. Can I change the color temperature and dim the light?
The DL165 LED Downlight offers CCT switching (2700K, 3000K, 4000K, or 5700K) for different lighting moods and supports triac dimming for adjustable brightness.
Q 5. Do you offer bulk LED lighting solutions for international projects?
Of course, we supply bulk orders globally for residential, commercial, and hospitality projects. For customized solutions, quotes, and shipping arrangements to Europe, North America, the Middle East, Asia, and beyond, please contact our sales team.
