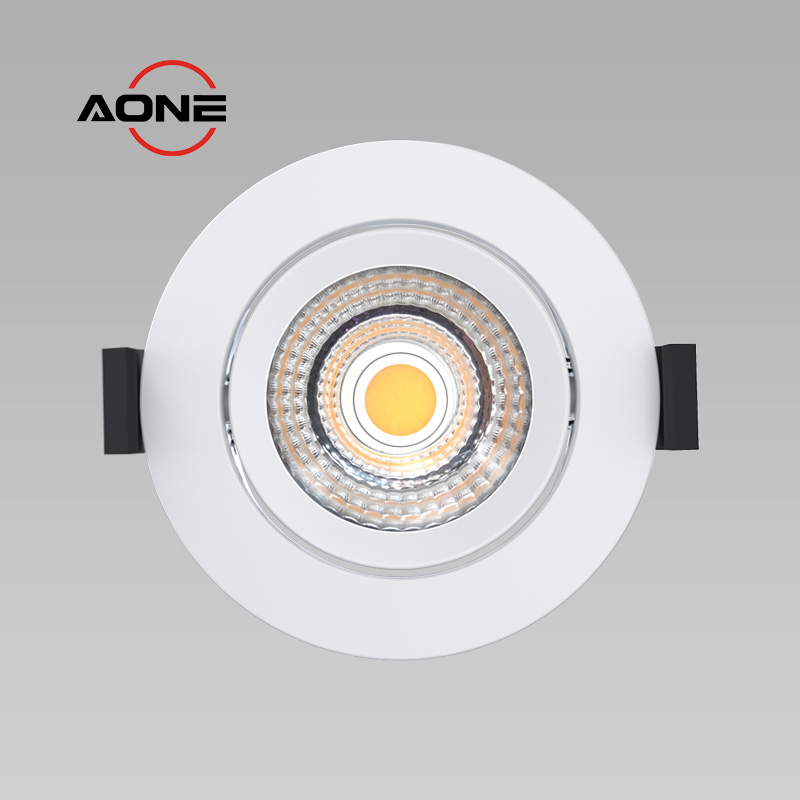

Tilt Aluminum Downlight Ultra thin 27mm DL86C COB Picture 1

Tilt Aluminum Downlight Ultra thin 27mm DL86C COB Picture 2

Tilt Aluminum Downlight Ultra thin 27mm DL86C COB Picture 3.jpg

Tilt Aluminum Downlight Ultra thin 27mm DL86C COB Picture 4.jpg

Tilt Aluminum Downlight Ultra thin 27mm DL86C COB Picture 5.jpg

Aluminum Ultra-Thin Downlight Tiltable Spot DL86C COB

Engineered for European spaces: This 27mm ultra-slim downlight delivers precision lighting with ±25° tilt, 110lm/W energy efficiency, and 3-step CCT selection. IP44-rated aluminum housing with customizable color finishes.Tool-free loop-in/out terminals simplify wiring. CE/UKCA/ROHS certified. Factory-direct supply, customizing OEM/ODM solutions available.

Dimensions：

Ø82 x H27mm,Cut-out 68-75mm

Power：

Color temperature：

2700K-3000K-4000K-

Dimming or not：

Yes, triac dimmable

Beam angle：

38° or 60°

Rated voltage：

AC220-240V

0086 153 6211 8442

Whatsapp: +86 153 6211 8442

lily@aoneled.eu

lnquiry Now

Key Features & Benefits

Recessed LED Downlight

Soft and High efficiency of 100lm/W

equivalent to 30W Halogen Bulb

Tiltable / Coverable

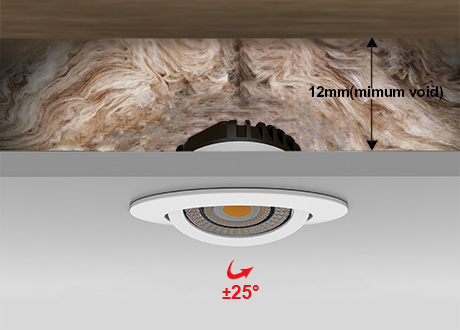

±25° tilt adjustment , coverable, mini void 12mm

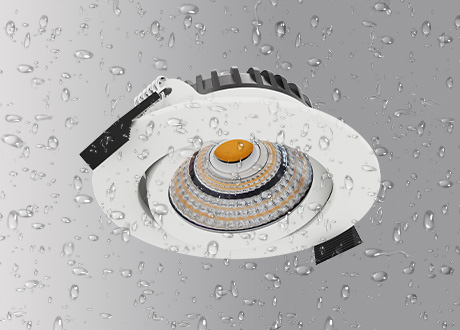

IP44 Rating

P44-rated dust and splash protection ensures safe, maintenance-free performance in humid environments

Metal Surface

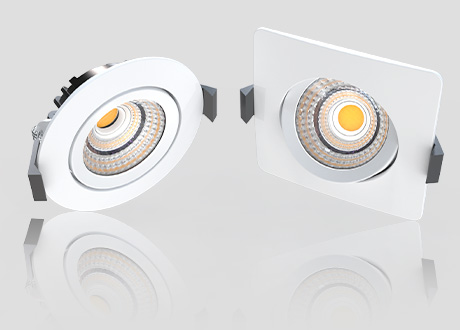

Round & Square options. Durable and attractive metal material creates a solid surface

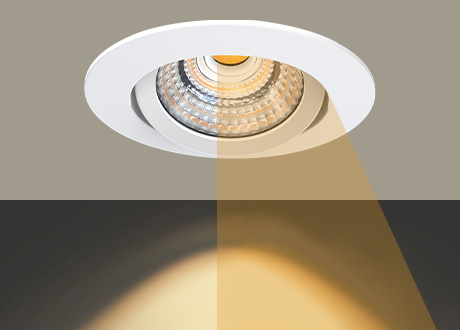

38° or 60° beam optional High quality of LED chip and lens, offering RA>80 or RA>90 version

38° or 60° beam optional

High quality of LED chip and lens, offering RA>80 or RA>90 version

Fast installation via Loop in/out terminal

3CCT Dip switch, Plug-and-play driver reduces installation time by 50%.

Technical Specifications

Model	DL86C COB	Beam Angle	38° or 60°
Protection Class	Class II / IP44(Front) / IK08	Dimming	Trailing edge and leading edge
Power	6W	Color	White,Black,Polished Chrome,Brushed Nickel
Input	AC220-240V 50/60Hz	Color Temperature	2700K/3000K/4000K
Lumen	600	Size	Dia82mm, Cutout:68-75mm
Efficiency	100lm/W	Certification	CE, UKCA, RoHS
Life Time	>50000 hours	Warranty	5 Years
Fixed or Tiltable	±25° Rotation	Coverable	Yes

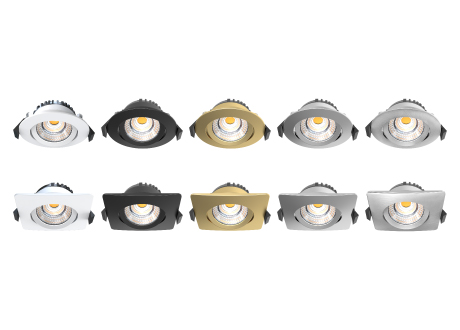

White, Black, Polished Chrome, Matt Brass, Brushed Nickel Round & Square options

Diameter 82mm, height 27mm, hole opening range 68-75mm, recessed depth 12mm.

led downlight spotlight drivers, 1st- 2nd fixing connectors, loop-in & loop-out terminal provides a simple installation.

8 choice of drivers, 1st- 2nd fixing connectors, loop-in & loop-out terminal provides a simple installation.

Applicable Scenarios

Perfect for residential, hospitality, commercial office applications

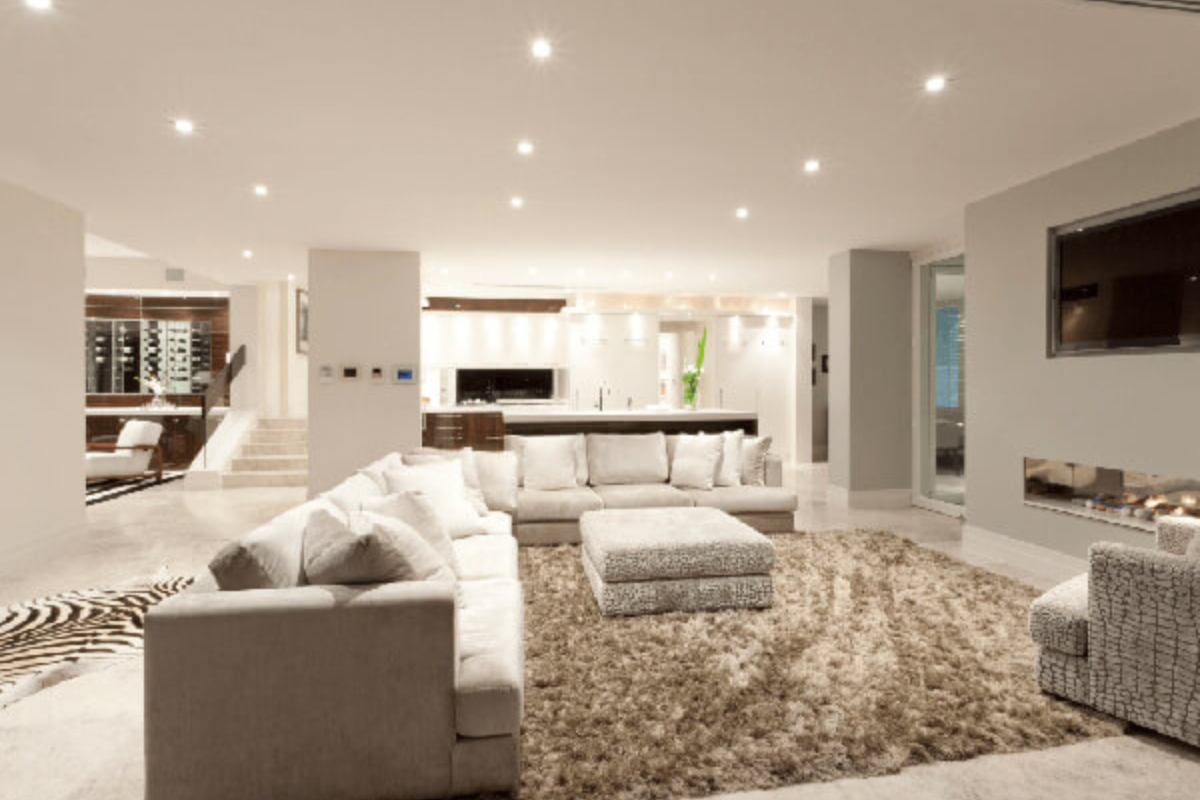

Living

3CCT optional, freely choose warm light and natural light to bring soft comfortable optical experience.

Shopping

Warm light to cool light, high efficiency CRI(RA) 80+ or 90+ MacAdams<6 best display the products.

Kitchen

Waterproof & Dustproof, practical downlight/spotlight delivering focused, energy-efficient illumination to highlight countertops, cooking zones, and work surfaces, improving visibility and productivity.

Bathroom

Front bezel IP44 waterproof, providing robust protection against splashes and dust while ensuring reliable, efficient lighting in bathrooms, laundries, and other moisture-prone environments.

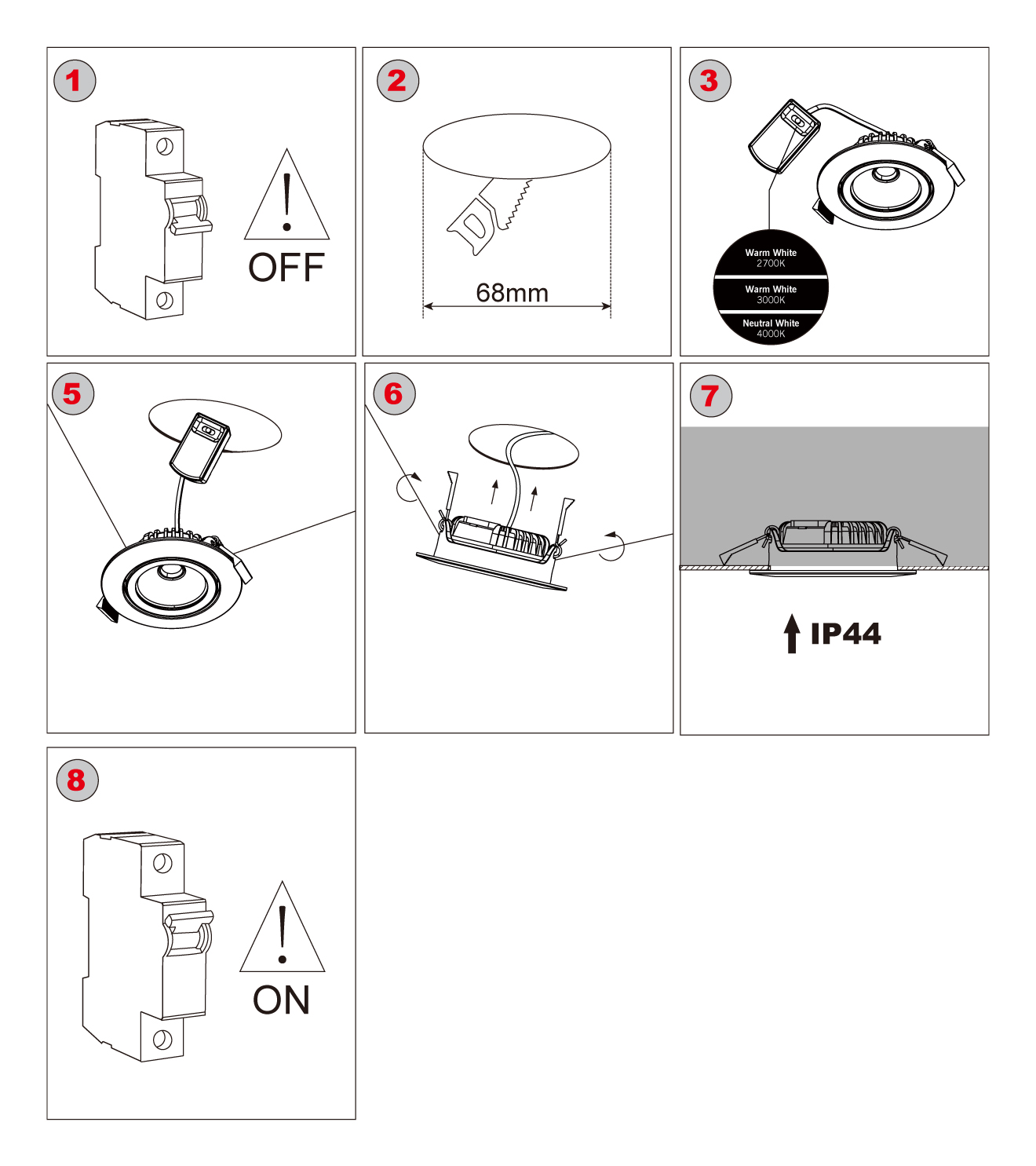

Installation Display

Turn off the power supply before installation, cut a hole (68-75mm diameter) in the ceiling for mounting, select color temperature: 2700K/3000K/4000K from warm light to cool light, connect the wires securely, insert the light into the hole and secure it, adjust the direction if needed, check the IP rating for installation zones, turn on the wall switch and test the light, ensure all steps are followed for safe and proper installation.
