Aluminum surface Ultra-Thin Downlight Tiltable DL86C SMD

Engineered for European applications, this 27mm ultra-slim downlight delivers precision beam control with ±25° tilt adjustment, 110lm/W high efficiency, and 3-step CCT selection; its IP44-rated aluminum housing offers customizable color finishes, while integrated tool-free loop-in/out terminals streamline circuit wiring. Certified to CE, ROHS standards, the fixture is supplied factory-direct and tailored OEM/ODM solutions available.

Dimensions：

Ø82 x H27mm,Cut-out 68-75mm

Power：

Color temperature：

2700K-3000K-4000K

Dimming or not：

Yes, triac dimmable

Beam angle：

38° or 60°

Rated voltage：

AC220-240V

0086 153 6211 8442

Whatsapp: +86 153 6211 8442

lily@aoneled.eu

lnquiry Now

Key Features & Benefits

Recessed LED Downlight

High efficiency of 110lm/W

equivalent to 33W Halogen Bulb

Tiltable / Coverable

±25° tilt adjustment , coverable, mini void 12mm

IP44 Rating

P44-rated dust and splash protection ensures safe, maintenance-free performance in humid environments

Metal Surface

Round & Square options. Durable and attractive die-cast aluminum creates a solid surface

38° or 60° beam optional High quality of LED chip and lens, offering RA>80 or RA>90 version

38° or 60° Beam Optional

High quality of LED chip and lens, offering RA>80 or RA>90 version

Fast Installation via Loop in/out Terminal

3CCT Dip switch, Plug-and-play driver reduces installation time by 50%

Technical Specifications

Model	DL86C SMD	Beam Angle	38° or 60°
Protection Class	Class II / IP65(Front) / IK08	Dimming	Trailing edge and leading edge
Power	6W	Color	White,Black,Polished Chrome,Brushed Nickel
Input	AC220-240V 50/60Hz	Color Temperature	2700K/3000K/4000K
Lumen	660	Size	Dia82mm, Cutout:68-75mm
Efficiency	110lm/W	Certification	CE, UKCA, RoHS
Life Time	>50000 hours	Warranty	5 Years
Fixed or Tiltable	±25° Rotation	Coverable	Yes

White, Black, Polished Chrome, Matt Brass, Brushed Nickel Round & Square options

Diameter 82mm, height 27mm, hole opening range 68-75mm, recessed depth 12mm

led downlight spotlight drivers, 1st- 2nd fixing connectors, loop-in & loop-out terminal provides a simple installation.

8 choice of drivers, 1st- 2nd fixing connectors, loop-in & loop-out terminal provides a simple installation

Applicable Scenarios

Perfect for residential, hospitality, commercial office applications

Living

3CCT optional, freely choose warm light and natural light to bring comfortable optical experience.

Shopping

Adjustable tilt LED downlight, designed to emphasize focal lighting and highlight key features.High efficiency CRI(RA) 80+ or 90+ MacAdams<6.

Kitchen

Waterproof & Dustproof, practical downlight/spotlight delivering focused, energy-efficient illumination to highlight countertops, cooking zones, and work surfaces, improving visibility and productivity.

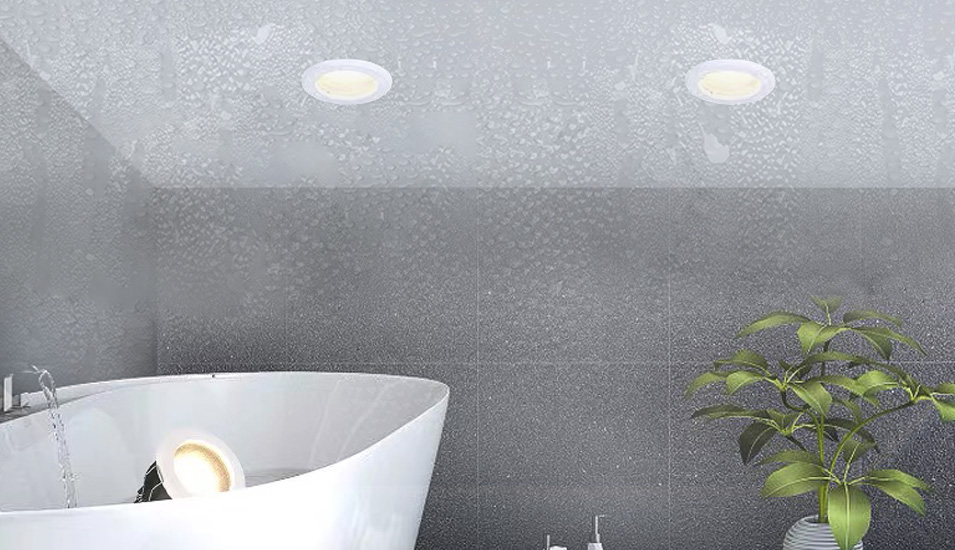

Bathroom

Front bezel IP44 waterproof, providing robust protection against splashes and dust while ensuring reliable, efficient lighting in bathrooms, laundries, and other moisture-prone environments.

Production Process

A-ONE is a professional LED lighting factory with 17 years of manufacturing experience. We feature independent R&D, offering free mold opening, test certifications. Equipped with automated & scientific production lines, each light undergoes 100% aging tests and strict quality checks. Enjoy 5-7 years warranty. Our process covers communication, design, sampling, quality/testing, material prep, production, function/EMC tests, aging, packaging & OQC. Ideal for reliable, high-quality LED lighting solutions.

downlight production process

Quality is our lifeline. We strictly enforce comprehensive testing and certification for every new product in collaboration with top-tier laboratories (SGS/TUV/DEKRA), covering CE-LVD, CE-EMC, CB, IP waterproof, SGS fire-rated, RED, SGS air-tightness, 850°C glow-wire, IK rating, Acoustic Rating, 50,000+ hours lifespan, ErP, ROHS, REACH. As a professional LED lighting manufacturer, we guarantee superior product quality through rigorous testing procedures and international certification standards.

downlight certification

Beyond third-party certifications with SGS/TUV/DEKRA, our in-house laboratory features 14+ advanced testing devices including EVERFINE Integrating Sphere, IES Test Equipment, EMC Chamber, IP6X waterproof Checking, Climate Chamber, Computer Aging System, and specialized equipment for dielectric, insulation, salt spray, surge, vibration and drop tests. This comprehensive testing capability ensures every finished product meets the highest quality standards from development to delivery.

downlight testing

Installation Display

Turn off the power supply before installation, cut a hole (68-75mm diameter) in the ceiling for mounting, select color temperature: 2700K/3000K/4000K from warm light to cool light, connect the wires securely, insert the light into the hole and secure it, adjust the direction if needed, check the IP rating for installation zones, turn on the wall switch and test the light, ensure all steps are followed for safe and proper installation.
