Home  >  Downlights > Fixed COB LED Downlights

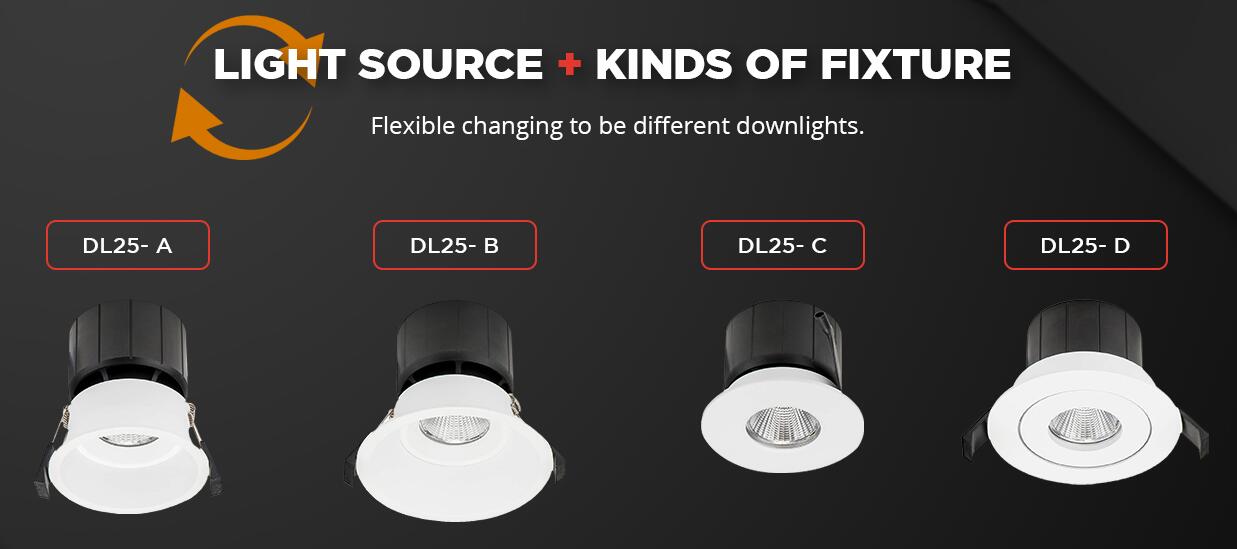

  • module downlight DL25A
  • module downlight DL25A
  • module downlight DL25A
  • module downlight DL25A
  • module downlight DL25A
  • module downlight DL25A

module downlight DL25A

    Model No: DL25-A

    Wattage: 12W

    Input Voltage: 100-240V

    LED Type: COB

    Dimension:Φ84*H95mm

    Cut-out: Φ75mm

    CCT:3000K/4200K/6000K

    CRI:80+/90+

    Lumen Output: 1020Lm

    Beam Angle: 45°

    IP Rating: IP44

    Dimmable:YES

    Frame Colour:White/Black

    NEW LED type Anti-glare lens MR16 downlight 10-15W recessed led module,

    cob LED,smart control,app control and remote control,800-1300lm,60 beam angle

PRODUCT DESCRIPTION

Advantage:

module downlight DL25A


All our LED LIGHTING products have three different functional models


- 1 CCT         It's a standard LED with one CCT (with one temperature color)


- 3 CCT IN ONE        It's 3in 1 temperature color with switchable button can change from Warm white to Cool white to Natural white and you can control the color through this switch, please find attached for CCT details information


- APP AND REMOTE  The DL25APP is designed to give a high intensity focust beam of light. This fitting is suitable for many home or commercial lighting applications. DL25APP is controlled by the ECO1 Smart Control App or hand held remote this downlight has ultra smooth variable colour range adjustment from warm white (3000K) to cool white (6000K) depending on the mood required in the room. This fitting is also very smooth dimming range from 2% to 100% to give even further flexibility in lighting control.


White finish and Black finish



module downlight DL25C




Product     NameCodePowerDimensionCutout sizeVoltageWeightLED CRIBeam Angle LumensColor     TemperatureDIM
Fixed COB LED DownlightsDL25A   10W signle   color10W84*95mm70-75mmAC200-240V 0.38kg10W   COB LED>80Ra45°850lm3000K/       4200K/  6000KTraic
Fixed COB LED DownlightsDL25A   10W Color   chagne by switch10W84*95mm70-75mmAC200-240V 0.38kg10W   COB LED>80Ra45°850lm3000K/       4200K/  6000KTraic
Fixed COB LED DownlightsDL25A   10W Color   chagne by remote and APP10W84*95mm70-75mmAC100-240V 0.38kg10W   COB LED>80Ra45°850lm3000K-       6000Kremote       and APP Dim
Fixed COB LED DownlightsDL25A   12W signle   color12W84*95mm70-75mmAC200-240V 0.38kg12W   COB LED>80Ra45°950lm3000K/       4200K/  6000KTraic
Fixed COB LED DownlightsDL25A   12W  Color   chagne by switch12W84*95mm70-75mmAC200-240V 0.38kg12W   COB LED>80Ra45°950lm3000K/       4200K/  6000KTraic
Fixed COB LED DownlightsDL25A   12W  Color   chagne by remote and   APP12W84*95mm70-75mmAC100-240V 0.38kg12W   COB LED>80Ra45°950lm3000K-       6000Kremote       and APP Dim
Fixed COB LED DownlightsDL25A   15W  signle   color15W84*95mm70-75mmAC200-240V 0.38kg15W   COB LED>80Ra45°1200lm3000K/       4200K/  6000KTraic
Fixed COB LED DownlightsDL25A   15W  Color   chagne by switch15W84*95mm70-75mmAC200-240V 0.38kg15W   COB LED>80Ra45°1200lm3000K/       4200K/  6000KTraic
Fixed COB LED DownlightsDL25A   15W  Color   chagne by remote and   APP15W84*95mm70-75mmAC100-240V 0.38kg15W   COB LED>80Ra45°1200lm3000K-       6000Kremote       and APP Dim
