RGB Smart Lighting: A Light Source for a Colorful Life

In modern lighting design, people are no longer satisfied with simple brightness adjustment. They want lights that can create mood and atmosphere through color. Beyond everyday warm white and cool white, RGB smart lighting—with its millions of colors—has become a powerful tool for expressing emotion and setting the perfect scene.

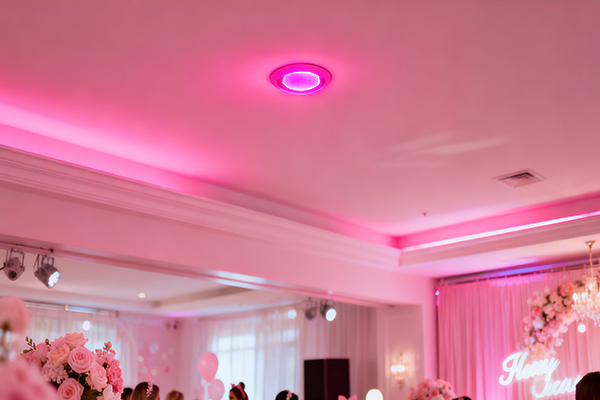

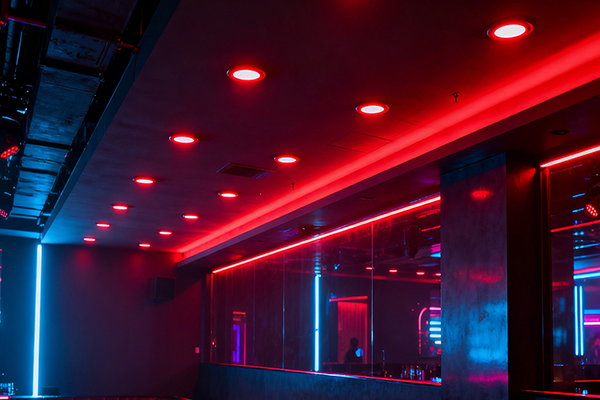

Let us think openly, pink for a girly party, purple for a romantic dinner, green for a plant-filled space, or red for high-energy nights in clubs and theaters.

RGB smart lighting is now an essential part of both beautiful interiors and modern smart homes. In an era of intelligence and scene-based control, it turns lighting from “manual and rough” into “precise, automated, and fun.”

What is RGB

RGB stands for Red-Green-Blue. It uses three separate LED chips (red, green, blue) that mix together to produce up to 16.7 million colors.

Great for pure, vibrant colors (pink, violet, emerald, etc.), but not ideal for white light. When all three colors are on full, you get a dull, grayish or tinted “fake white.” Color temperature cannot be adjusted properly.

Best for: parties, stage lighting, decorative effects where true white light isn’t needed.

（references： RGB color model – Wikipedia. https://en.wikipedia.org/wiki/RGB_color_model）

What is RGBWW

RGBWW is an upgraded version that adds a WW channel (Warm White + Cool White). It integrates both warm white (2700K) and cool white (5700K/6500K) chips.

By adjusting the ratio of warm and cool white via PWM, it achieves continuous color temperature adjustment from 2700K to 6500K while retaining full RGB color capability.

RGBWW is currently the closest thing to an “all-in-one lighting” solution, offering rich colors + precise color temperature + high CRI. It is widely used in smart homes (bedrooms, living rooms, etc.). For end users, this means unprecedented lighting freedom and a truly human-centered experience — the ideal balance of practicality and artistry in smart home lighting.

What is RGBCW

RGBCW includes red, green, blue, and a single cool white channel. Because it lacks a dedicated warm white source, it can only produce cooler white light (around 5000K–6500K) and cannot create true warm yellow tones.

RGBCW is better suited for users who mainly want colorful atmosphere lighting, have low demand for warm white, or are on a tighter budget.

How to Achieve True RGB Smart Control: A Look at the Tuya Smart Ecosystem

The RGB series hardware lays the foundation for rich colors, while the Tuya Smart ecosystem breathes “thinking and response” capabilities into them. Through commands, scene linkage, and automation, it forms a truly intelligent control network.

What is the Tuya Smart ecosystem

It is a global, open platform-as-a-service ecosystem. Tuya does not manufacture smart hardware itself but provides manufacturers with complete IoT solutions: cloud services, mobile app development tools, and connectivity modules. Any lighting brand can integrate Tuya’s software and hardware solutions to quickly turn their products into smart devices that are managed through the unified Tuya Smart App.

How is it controlled

Tuya Smart mainly uses two mature wireless technologies: Wi-Fi and Bluetooth.

Wi-Fi devices connect directly to the home network, allowing remote control from anywhere with internet access.
Bluetooth focuses on local, low-power control — even without internet, you can still operate the lights directly from your phone.

Many premium devices support both Wi-Fi and Bluetooth for maximum flexibility and reliability. Users can also connect to Tuya-compatible smart speakers for convenient voice control.

PWM Driving

How does Tuya RGB smart lighting precisely control each LED chip to mix millions of colors? The key technology is PWM driving.

What is PWM

PWM stands for Pulse Width Modulation. It is a technique that controls analog circuits by rapidly switching a digital signal on and off. In LEDs, it switches between fully on and fully off at very high frequency (>100 Hz, typically 1–20 kHz). The perceived brightness depends on the proportion of time the LED is on within each cycle — the duty cycle.

Examples:

100% duty cycle → full brightness
50% duty cycle → half brightness
0% duty cycle → off

Why is PWM the best choice

Precise color control: accurately adjusts the duty cycle of R, G, B, and PWM channels to mix exact target colors.
Smooth, flicker-free dimming from 0% to 100%.
Easy digital integration: PWM is a digital signal, perfectly suited to microcontrollers and smart ecosystems for complex programming and dynamic effects.

How to Build a Tuya RGB Smart Lighting System

Three layers work together

RGB series (hardware layer): provides color and white light capability (e.g., RGBWW = color + tunable white).
PWM driving (execution layer): translates digital commands into precise light output.
Tuya Smart ecosystem (control layer): sends dimming/color commands via app or voice → module outputs PWM signals to the driver.

Real-world example

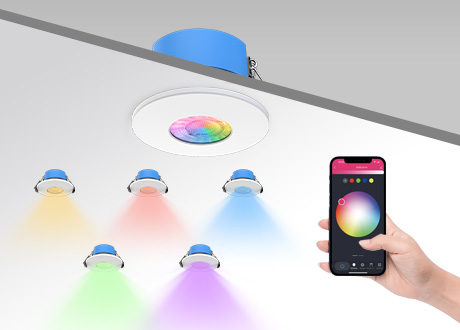

The perfect combination of these three elements ultimately gives birth to smart lighting products that are extremely powerful in functionality and outstanding in user experience. Let us take the smart downlight model “Tuya RGB × Fire-rated Smart Control Downlight WiFi/Bluetooth Support DL190 Tuya” as an example to illustrate:

Basic specs:

8W + 100 lm/W
IP65 waterproof & dustproof
Fire-rated for 30/60/90 minutes
Full RGB + tunable CW + WW via app
Wi-Fi + Bluetooth dual mode
Compatible with Amazon Alexa and Tuya Smart
PWM driving
Quick installation via loop-in/loop-out terminals

Key benefits from the three-element combination:

Full-spectrum light: stepless RGB color + tunable warm/cool white for every scenario from functional lighting to mood creation.
Reliable connectivity: Wi-Fi for remote control, Bluetooth as backup — works anywhere, anytime.
Smart home integration: easy device discovery, grouping, and scene customization in the Tuya app; full Amazon Alexa voice control (e.g., “Alexa, turn the lights blue”).
Professional-grade quality: high efficiency, IP65 for bathrooms/kitchens, fire-rated safety for commercial and premium residential projects.
Fast installation: loop-in/loop-out terminals speed up wiring.

What Can We Learn

From this deep dive into RGB smart lighting, one thing is clear: modern smart lighting is a true system. Its excellence comes from the perfect teamwork of light sources, drivers, and IoT control.

RGB smart lighting breaks the limits of single-color bulbs, turning ordinary moments into the exact mood you want. One tap on your phone changes everything — perfectly fitting your family’s unique lifestyle. With high-frequency PWM, colors stay pure and flicker-free, giving you stable, comfortable, high-quality light every time.

These are the details that deliver the unmatched experience only real smart lighting can provide.

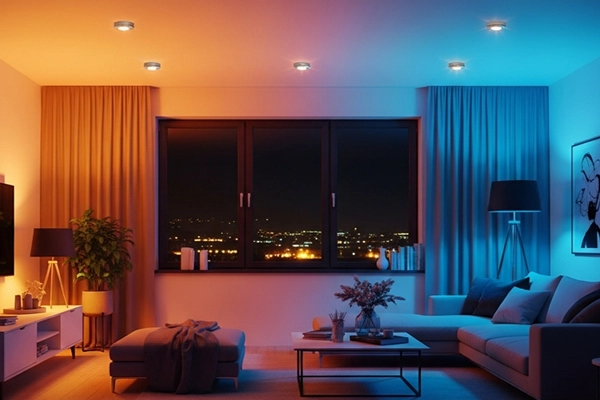

Tuya RGB smart lighting for creating ambiance in the living room

FAQ

Q1: How to choose between RGB, RGBWW, and RGBCW?

Pure atmosphere (KTV, bars): RGB
Living room/dining room: RGBWW (good white light essential)
Kitchen/garage needing bright cool light only: RGBCW

Q2: If the internet goes down, do Tuya lights become useless?

A: New devices since 2024 are nearly all Wi-Fi + Bluetooth dual-mode. When offline, Bluetooth still allows full local control.

Q3: Does PWM dimming cause flicker that phones can capture?

A: Reputable manufacturers use PWM frequencies ≥2000 Hz. Invisible to the human eye and undetectable on 99% of phone cameras.

Q4: Will many Tuya smart lights in one room slow down my home Wi-Fi?

A: Practically no noticeable impact. Smart bulbs exchange only tiny amounts of data when receiving commands and stay in low-power listening mode the rest of the time — far less load than phones or computers. A decent router is more than enough.

Q5: What’s the difference between RGBWW and RGBCCT?

A: They are the same thing, just different names. RGBCCT = RGB + CCT (CCT = Correlated Color Temperature, i.e., tunable white). Over 95% of products labeled “RGBCCT” are actually RGBWW.
